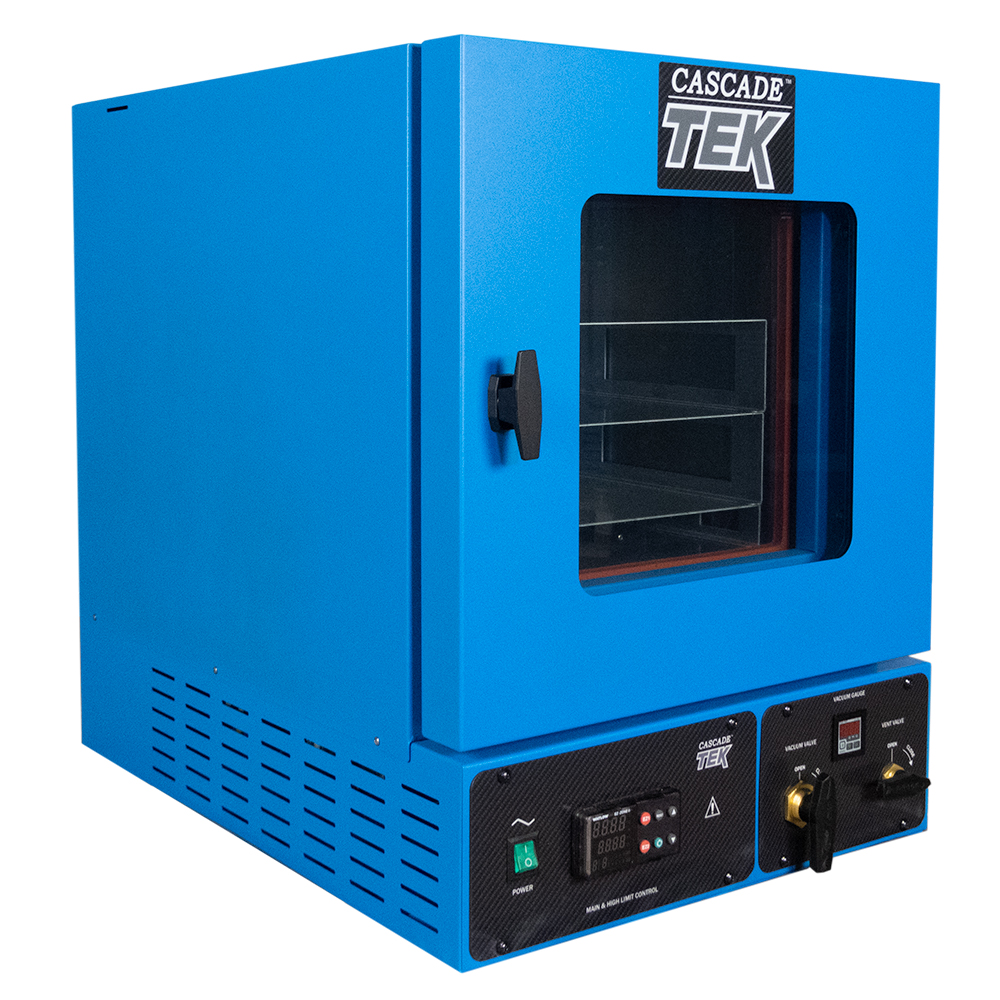

TVO-2-2 Vacuum Oven


Part Id: TVO-2-2

Vacuum drying is the most efficient method to remove moisture – especially from temperature sensitive products. Cascade TEK’s TVO-2 vacuum oven has a capacity of 1.7 cubic feet and is our most popular benchtop vacuum oven model.

Also available in 110 VOLTS.

Request a Quote

Product Description

The TVO-2-2 vacuum oven has a capacity of 1.7 cubic feet and is our most popular benchtop vacuum oven model. Cascade TEK is happy to offer everything you need for a complete vacuum drying system – including dry or wet vacuum pumps, connection kits and a variety of door gasket materials suitable to your application.

Important Vacuum Oven Features

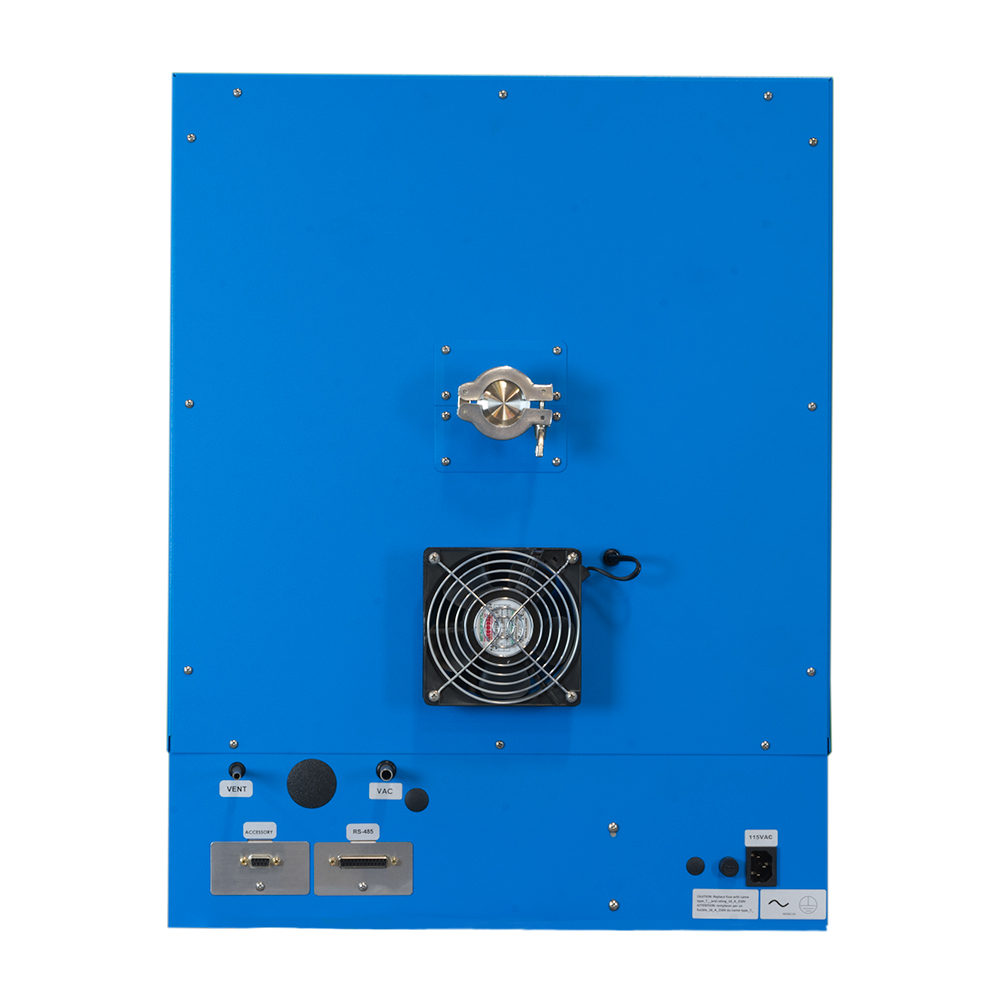

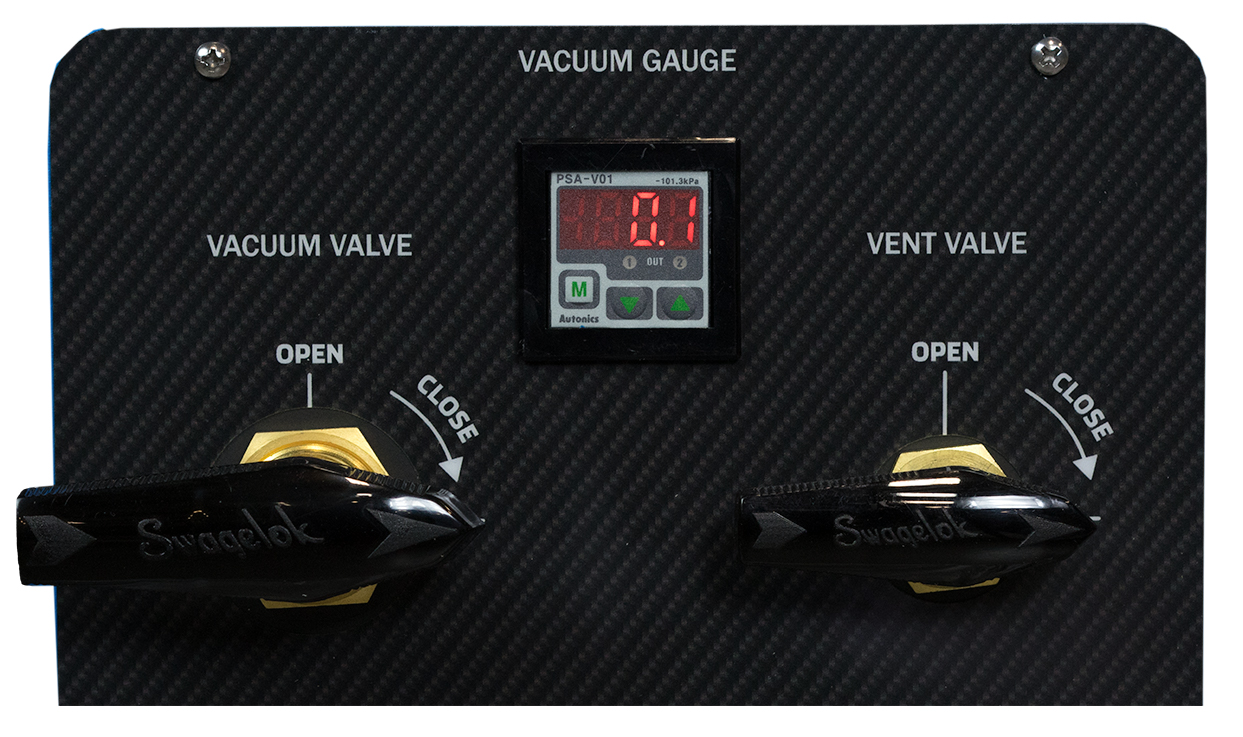

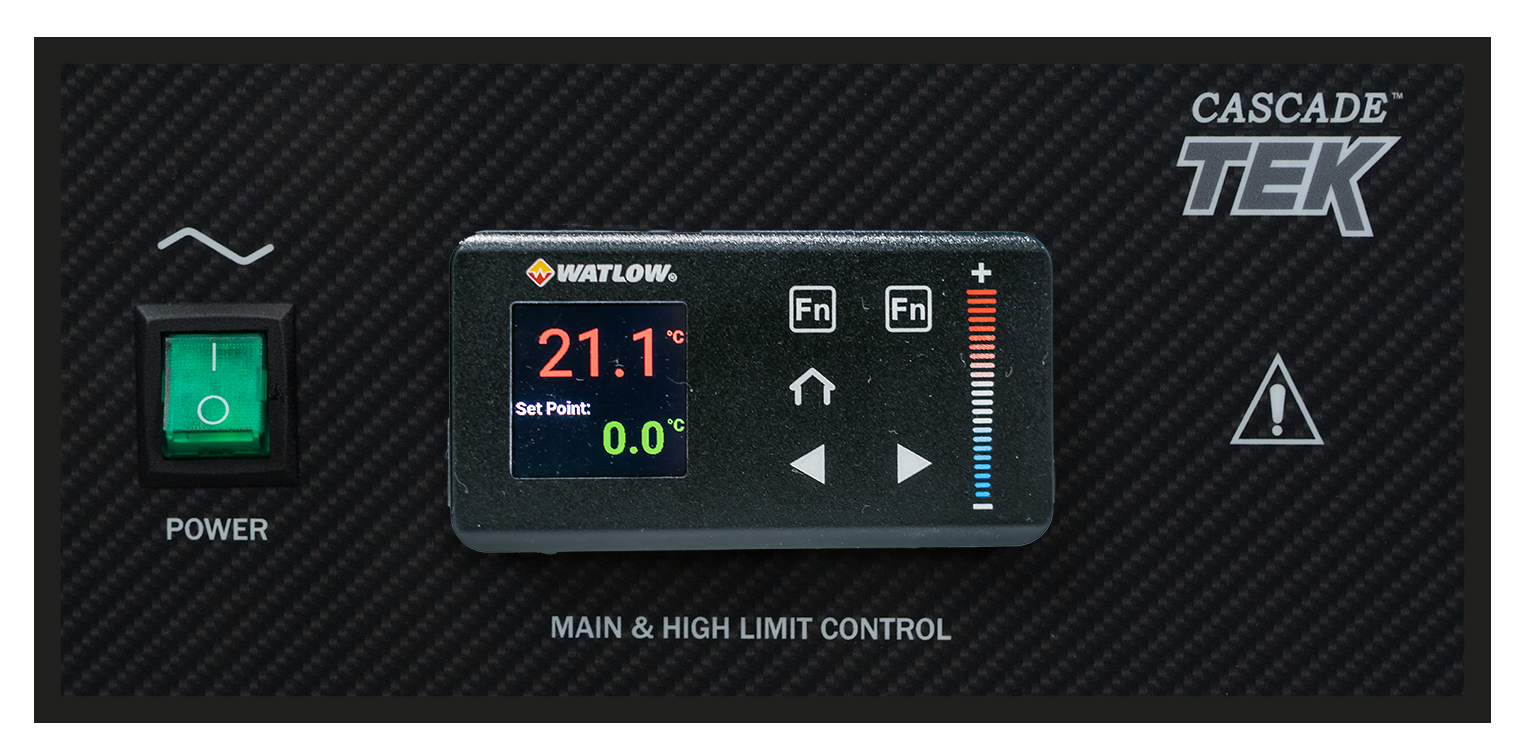

Oven temperature is controlled via a Watlow programmable ramp and soak controller. (Ask about how it can be configured to automatically execute your vacuum drying process). The TVO-2-2 also includes a fully integrated digital overtemperature protection controller. Vacuum is read in inches of Mercury (Hg) via a digital vacuum gauge. Vacuum & Backfill hand valves are conveniently located on the front control panel. The purge valve is set up to allow for backfilling with any inert gas. Rear connections include: a 3/8″ tube stub for the vacuum pump & 1/4″ tube stub for backfill. An additional KF25 vacuum connection is located in the rear center for optional feedthrough or sensor connections. The TVO-2-2 also has 3 stackable aluminum shelves. Cascade TEK offers the appropriately sized connection kits and pumps to bring the entire system on line.

Standard Features

Glass Viewing Window
Inert gas backfill Connection

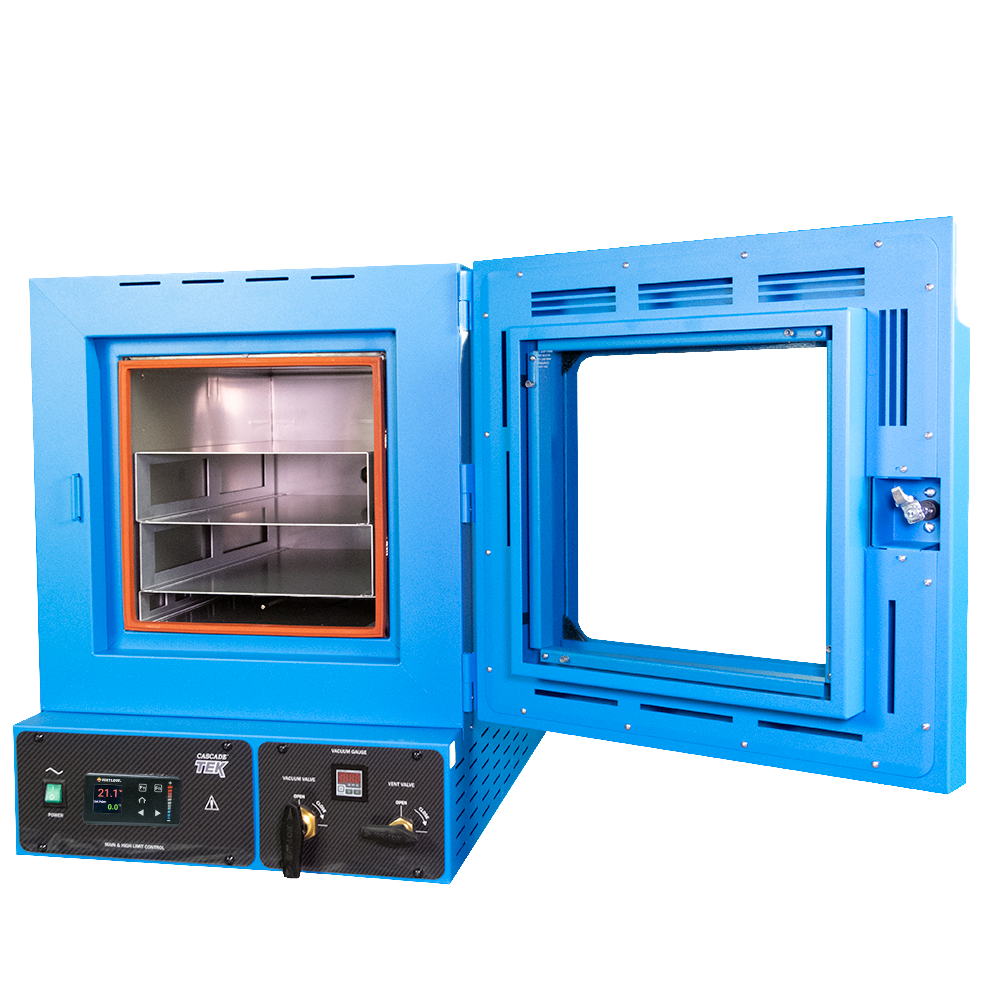

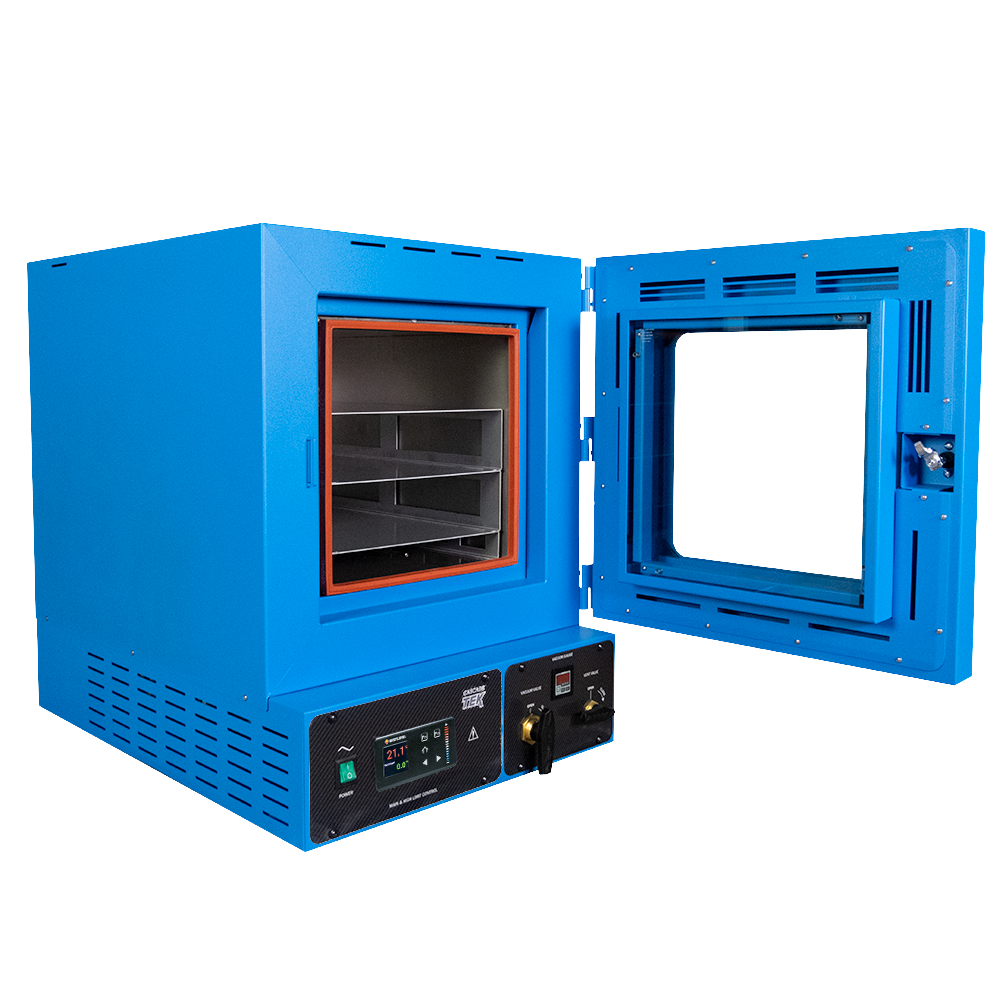

Stainless Steel Interior
Aluminum Shelves
Powder Coated Steel Exterior
Digital Integrated Over Temperature Limit
Spare KF25 Access Port
Recipe based PID Temperature Control. 4 Ramp and Soak recipes with up to 40 total steps.
61010-1, EN 61010-1, CSA 61010-1, CE, SAFETY CERTIFICATIONS
Analog Outputs for temperature and pressure

Automate Your Vacuum Drying Process

Cascade TEK can automate the TVO-2-2 to execute your vacuum drying process with the push of a button. This includes automatic opening/closing of vacuum/vent valves, automatic backfill sequence and temperature ramps, alarms and shut down. Our automated systems integrate specialty pumps, traps, serial communications and vacuum rated feedthrough based on your specific needs. Please inquire.

Customized to Meet Your Specific Application

Cascade TEK understands that every requirement is unique. We do not pair a generic vacuum pump with each oven. We help determine the correct pump to meet your exact requirements. Let us help you choose the correct vacuum pump and connection kit:
• See our favorite vacuum pumps
• See our list of connection kits and other vacuum accessories

Product Specifications


1.7 cubic ft.

Interior Dimensions

12''x 20''x 12'' (30.48 x 50.8 x 30.48mm)

Exterior Dimensions

18.75'' x 26.5''x 24.5'' (47.63 x 67.31 x 62.23mm)

Unit Weight

148 lb (67.1 kg)


3 (stackable)

Access Port

1” vacuum port in rear (KF25)

Temperature Range

10°C above ambient to 220°C

Temperature Uniformity

±7% of set-point @ 150°C

Vacuum Range

-29.9 inHg


2-Year Limited Warranty

Vacuum Gauge

0 to -29.9" Hg

Myself and the rest of the team have been very pleased with the TVO-2. Specifically, the ease of use (e.g. recipe creation, ease of adding additional outputs, inputs, etc.), and the general equipment reliability thus far. We use the system ~16 hrs / day nearly non-stop and the only maintenance required has been gasket replacement, which is an expected event.

– Matthew Anderson
BSCI, Boston Life Sciences
