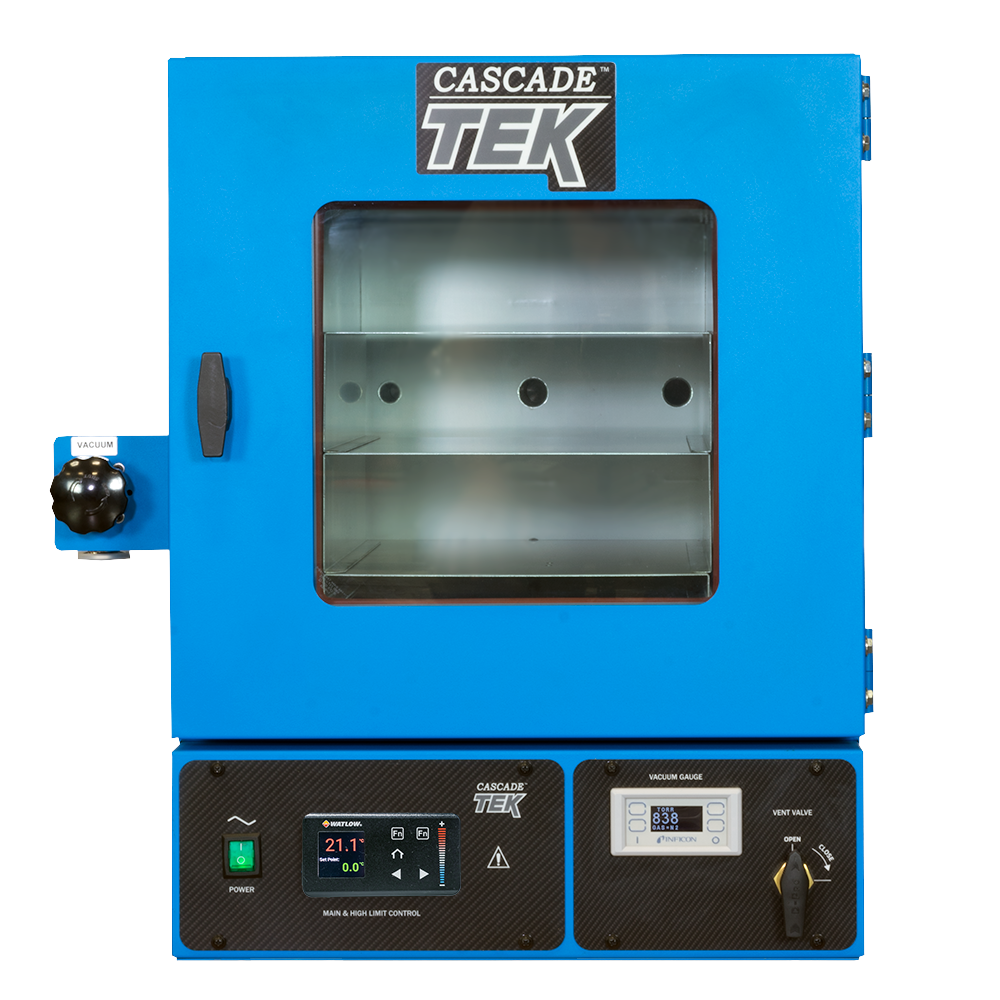

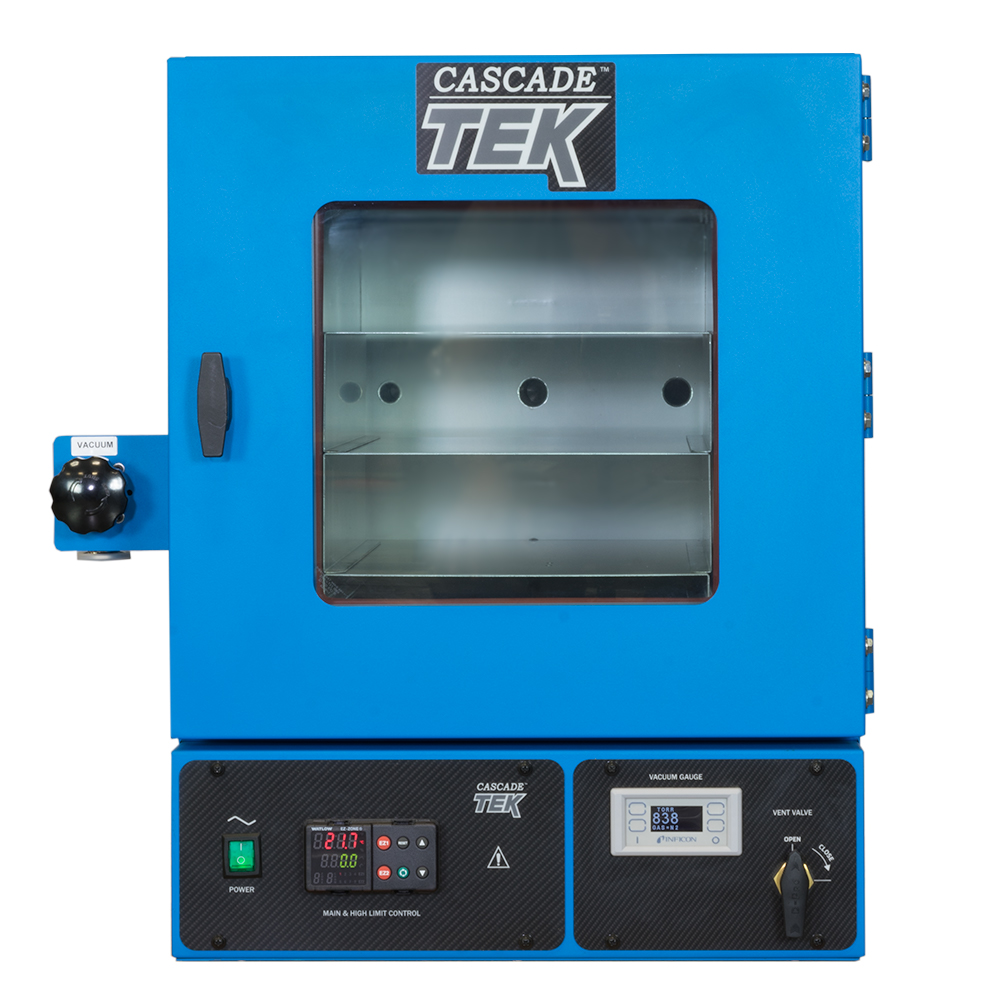

TVO-2-SV Side Mounted Hand Valve Vacuum Oven

$9,153.00

Part Id: CTVS223

TVO-2-SV Side Mounted Hand Valve – The TVO-2-SV has an upgraded vacuum flow path. The vacuum line is increased from 3/8” to  1” (KF25) inner diameter Stainless Steel tube.  This allows for much higher vacuum flow rates, vacuum conductance, and helps remove high gas loads.  It also helps achieve deeper vacuum levels faster.   The upgraded valve is mounted on the left side of the oven for easy reach.  This eliminates the small vacuum valve in the control panel

Also available in 220 VOLTS.

Request a Quote

Product Description

TVO-2-SV Side Mounted Hand Valve

The TVO-2-SV has an upgraded vacuum flow path. The vacuum line is increased from 3/8” to  1” (KF25) inner diameter Stainless Steel tube.  This allows for much higher vacuum flow rates, vacuum conductance, and helps remove high gas loads.  It also helps achieve deeper vacuum levels faster.   The upgraded valve is mounted on the left side of the oven for easy reach.  This eliminates the small vacuum valve in the control panel.

Includes upgraded Inficon (1000 Torr to 1mTorr) Full Range Digital Vacuum Gauge to allow for reading the full ultimate vacuum of the process/pump.

Standard Features

Glass Viewing Window
Inert gas backfill Connection
Stainless Steel Interior
Aluminum Shelves
Powder Coated Steel Exterior
Digital Integrated Over Temperature Limit
Spare KF-25 Access Port
Recipe based PID Temperature Control. 4 Ramp and Soak recipes with up to 40 total steps.
61010-1, EN 61010-1, CSA 61010-1, CE, SAFETY CERTIFICATIONS
Analog Outputs

Customized to Meet Your Specific Application

Cascade TEK understands that every requirement is unique. Ask about modifying our ovens to meet your exact requirements. Popular modifications include:

• Additional Serial communication capabilities including Modbus® RTU, EtherNet/IP™, Modbus® TCP, PROFIBUS DP,
DeviceNet™ and J1939 CAN bus
• Additional access ports for feedthrough and power connections
• Additional shelves or custom racks to maximize oven capacity
• Also available in 220V configurations
• NIST traceable calibrations
• Factory Acceptance Testing (FAT)

Vacuum pumps are also very application specific.  We help determine the correct pump to meet your exact requirements. Let us help you choose the correct vacuum pump and connection kit:

• See our favorite vacuum pumps
• See our list of connection kits and other vacuum accessories

• Before 2024 upgrade to Watlow PM9 Plus unit controllers from the discontinued Watlow EZ Controllers product manual are located on our resources page

Product Specifications

Capacity

1.67 cu.ft. (47.2 Liters)

Interior Dimensions (W x D x H)

12''x 20''x 12'' (304 x 508 x 304 mm)

Exterior Dimensions (W x D x H)

24.5" x 34.9" x 27.1" (623 x 886 x 689 mm)

Unit Weight

183 lb (83 kg)

Shipping Weight

224 lb (102 kg)

Shelves

3 standard, 3 total

Access Port

1" vacuum port (KF-25)

Warranty

2-Year Limited Warranty

Electrical

50/60Hz, AC, 1Ø

Voltage

110V-120V

NEMA Plug Supplied

NEMA 5-15P

Temperature Range

10°C above ambient to 220°C

Heat-Up Time

120 minutes to 150ºC

Temperature Uniformity

±6% of Set Point

Vacuum Range

1100 to 0.1 mTorr

Vacuum Gauge

1000 Torr – 0.1 mTorr

Safety Certifications

UL 61010-1, EN 61010-1, CSA 61010-1. CE
