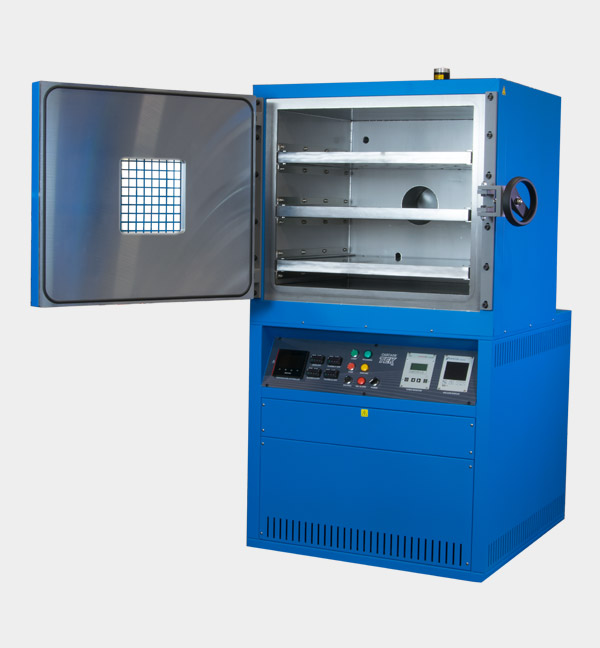

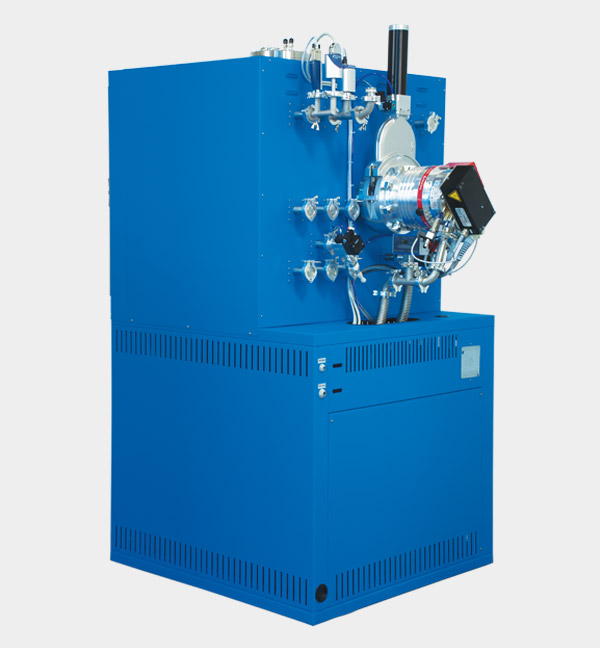

SVO-10-T Turbo Vacuum Oven

$94,800.00

Part Id: SVO-10T

The SVO-10T TURBO is a fully automated, high-vacuum drying oven built to execute your unique bake-out or drying process. Ideal for space/flight hardware, connectors, cubesats, or any vacuum process requiring vacuum in the high-vacuum ranges up to 1.0 x 10-6 Torr.

Request a Quote

Product Description

Standard Features

Glass Viewing Window

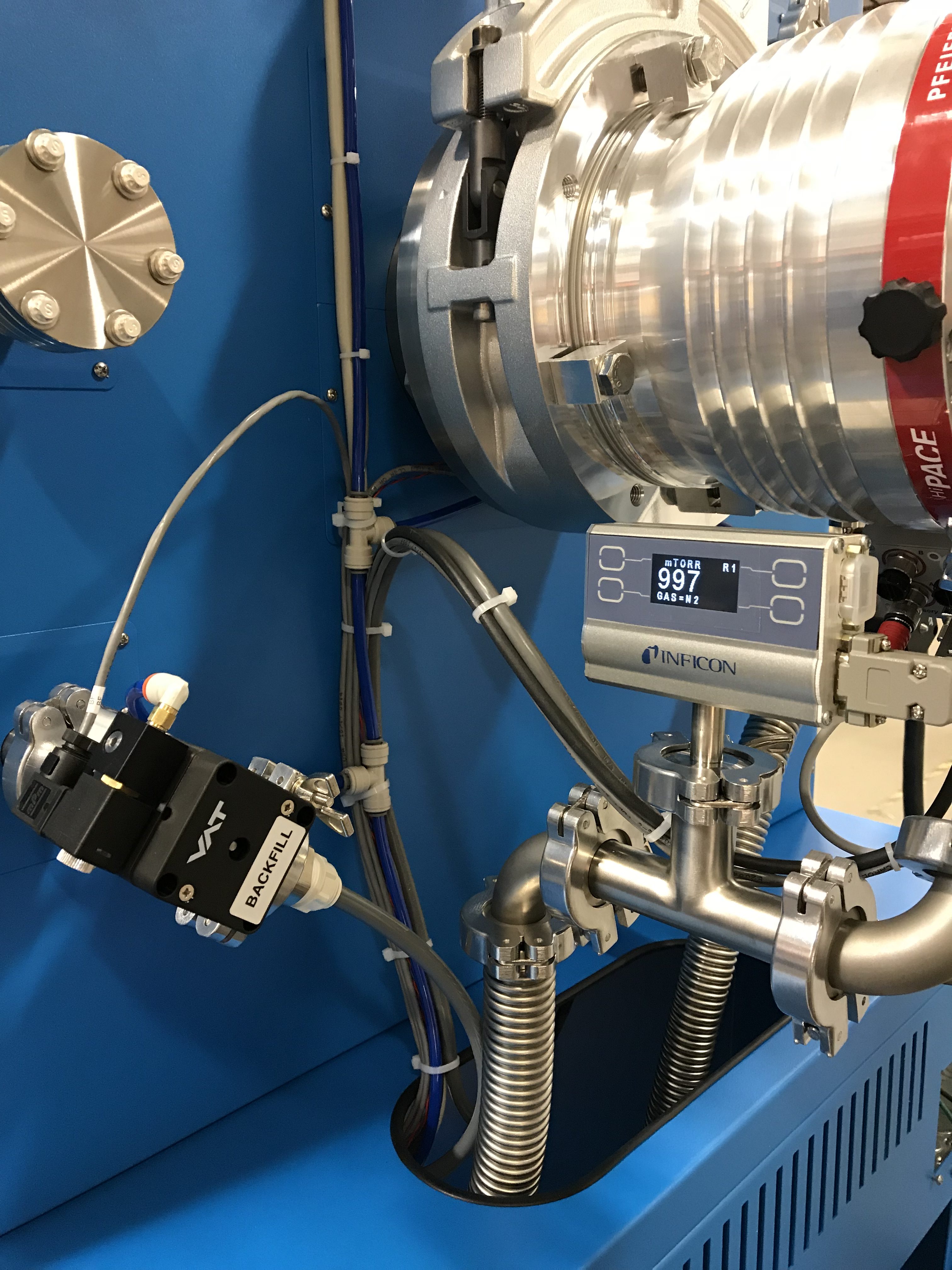

Inert gas backfill Connection
Stainless Steel Interior
Stainless Steel Shelves
Powder Coated Steel Exterior
Digital Integrated Over Temperature Limit
Over Pressure Relief Valve
Spare KF25 Access Port
Spare 2.75″ CF (for future RGA addition)
Watlow F4T Touchscreen Temperature Controller
Recipe based PID Temperature Control. 40 Ramp and Soak recipes with up to 50 total steps per recipe.
Interlocked VAT Gate Valve

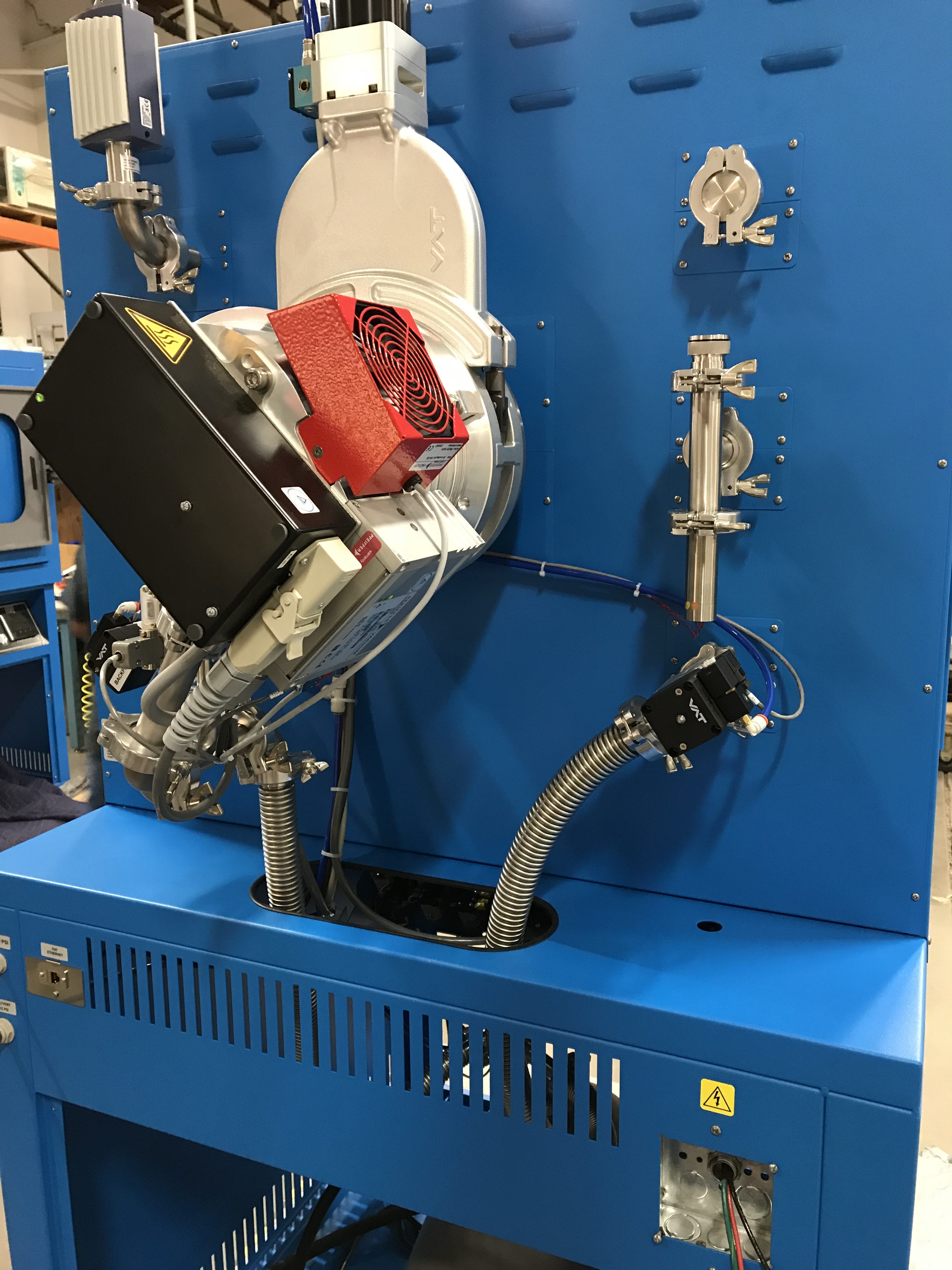

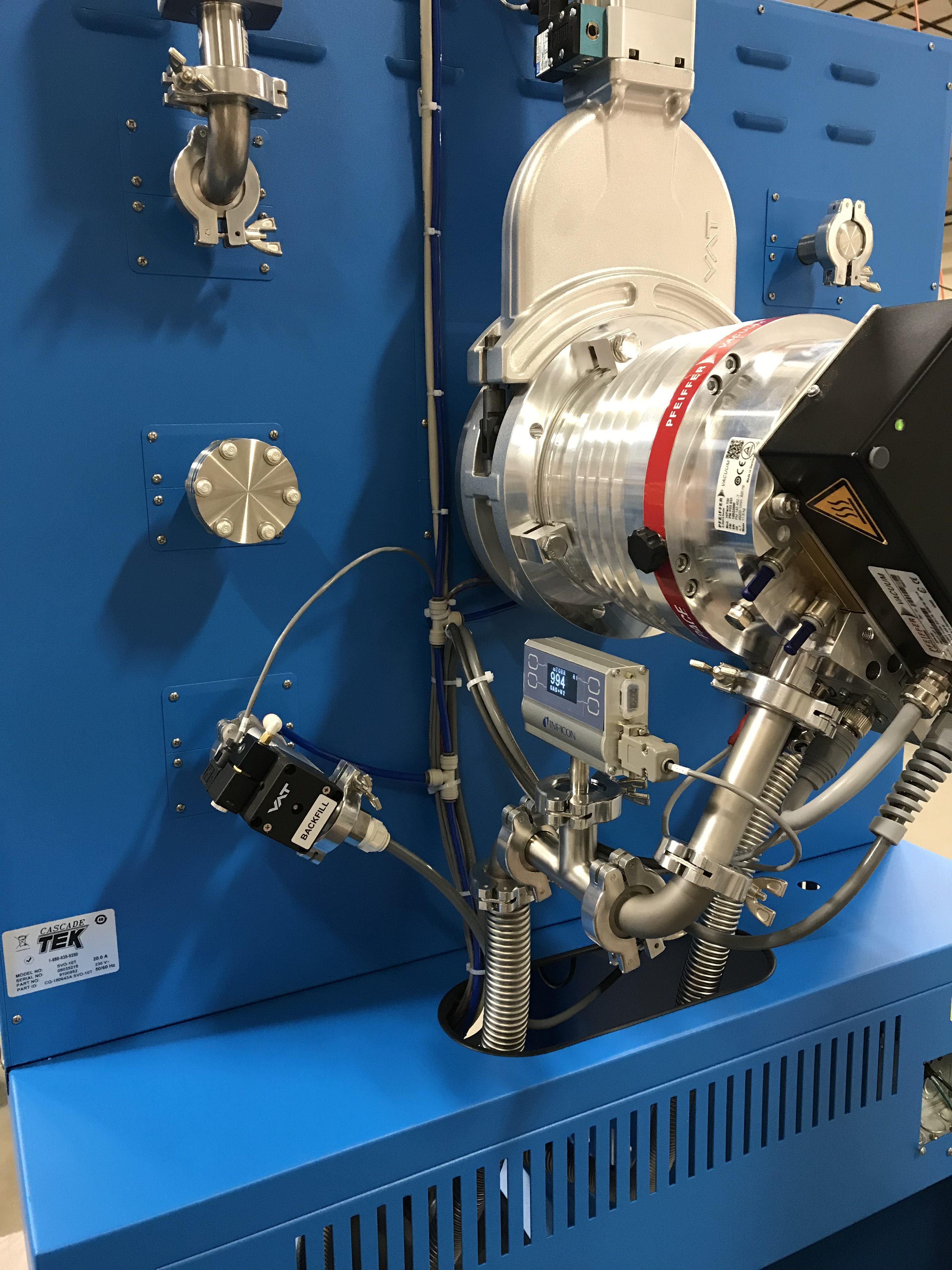

Pfeiffer HiPace 700 Turbo Molecular Vacuum Pump
Agilent IDP-15 Dry Scroll Roughing Vacuum Pump
UL 61010-1, EN 61010-1, CSA 61010-1, CE, SAFETY CERTIFICATIONS
Analog Outputs

Turn Key Hi-Vacuum Oven – Execute Bake-Outs in 10-6 Torr Range.

The SVO-10T TURBO is a fully automated, hi-vac (TVAC) drying oven built to execute your unique bake-out or drying process. Ideal for space/flight hardware, connectors, cubesats, or any vacuum process requiring vacuum in the “hi-vac” ranges up to 1.0 x 10-6 Torr. Cascade TEK integrates the appropriately sized roughing pump and turbo pump to minimize process time in our largest 10 cubic foot 304 stainless steel vessel.

Automated Vacuum Process for Easy Operation

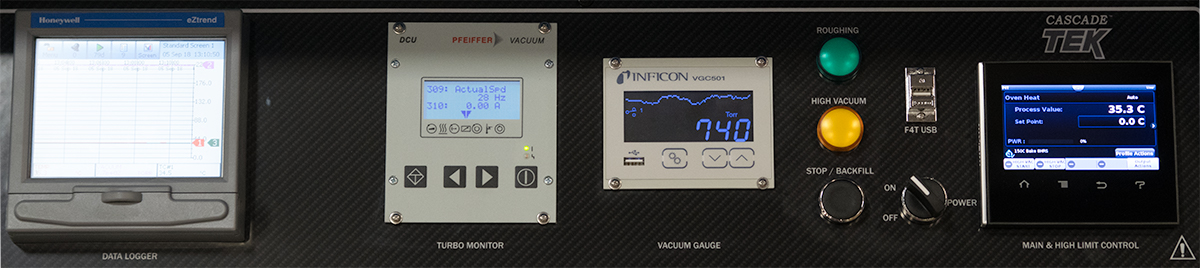

The SVO-10-T control system is designed for simple push button execution of your vacuum drying process. Simple, touchscreen control allows for easy creation of temperature profiles. Integral PLC interlocks the operation of the process to prepare and safeguard the Turbo pump. Vacuum levels are displayed digitally with full measurement ranges in Torr. Independent Overtemp Limit (OTL) serves as a fail-safe for your product inside the oven.

Need Assistance To Determine The Fastest Vacuum Bake-Out Process?

Let Cascade TEK develop your vacuum outgassing process. Since 1992 we have provided vacuum ovens for military, aerospace, medical, and automotive industries – and learned plenty about vacuum drying along the way.

Optional Features

Digital Datalogger
Feedthrough’s
Heated/Cooled Platen (-100C to +220C)
TQCM Adaption
RGA
Calibration
Factory Acceptance Testing
Vacuum Theory Training

Product Specifications

Capacity

10 cu.ft. (283 liters)

Interior Dimensions

28.5” W x 24.5” H x 26” D

Exterior Dimensions

36.25” W x 62” H x 45” D

Access Port

KF25 (1.0") and 2.75" CF

Temperature Uniformity

±6% of Set Point

Temperature Range

10°C above ambient to 220°C

Vacuum Range

1.0 x 10-6 Torr @150C

Vacuum Gauge

3.8 x 10-10 Torr

Voltage

220V-240V

Electrical

50/60Hz, AC, 1Ø

NEMA Plug Supplied

None, Hardwired

Shipping Weight

1679 lb (762 kg)

Shipping Dimensions

62.25 x 46.25 x 85.75" ( )

Warranty

2-Year Limited Warranty
