TVO-5 Vacuum Oven

$9,000.00

Part Id: CTV522

Oven temperature is controlled via a Watlow programmable ramp and soak controller. The TVO-5 also includes a fully integrated digital overtemp protection controller. Vacuum & purge hand valves are conveniently located on the front control panel. The purge valve is set up to allow for backfilling with N2. Rear Vacuum connections include: a 3/8″ connection for the vacuum pump and a 1/4″ connection for purge / backfill. An additional KF25 vacuum connection is located in the rear center for feedthru or sensor connections.

Also available in 220 volts.

Request a Quote

Product Description

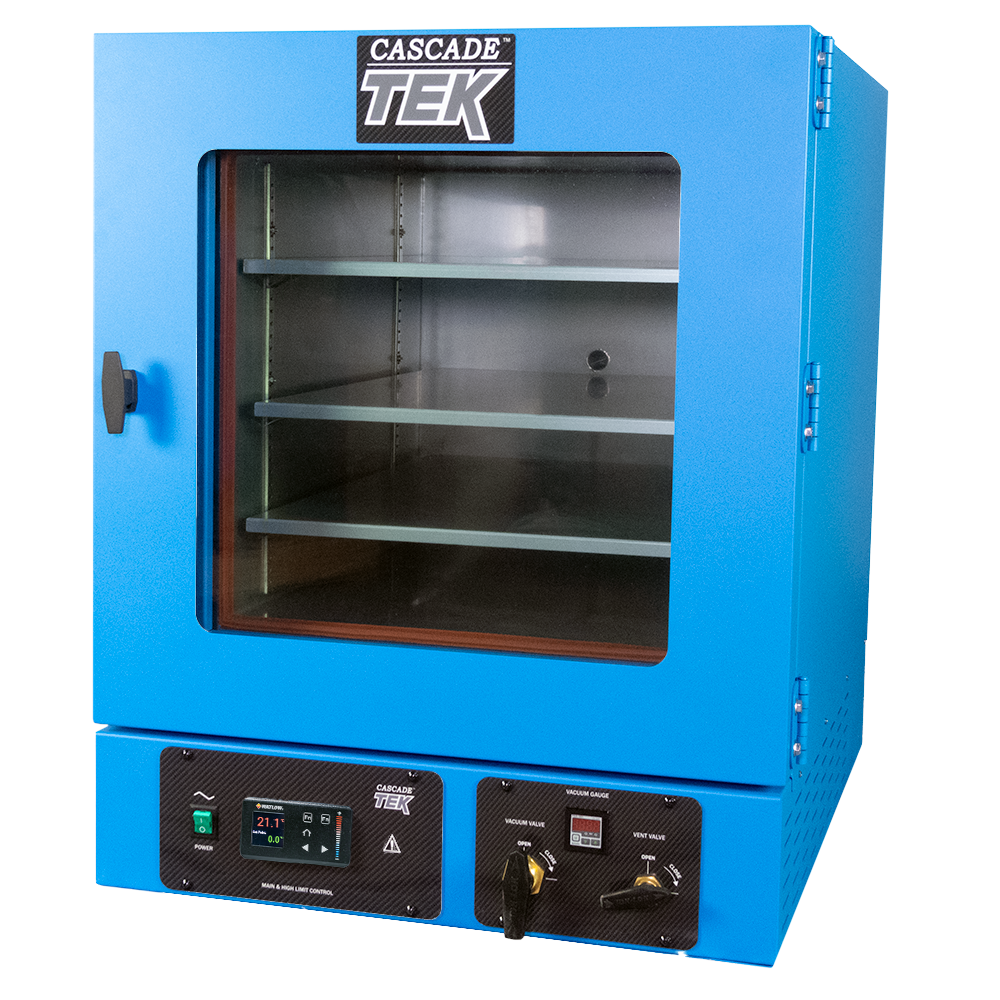

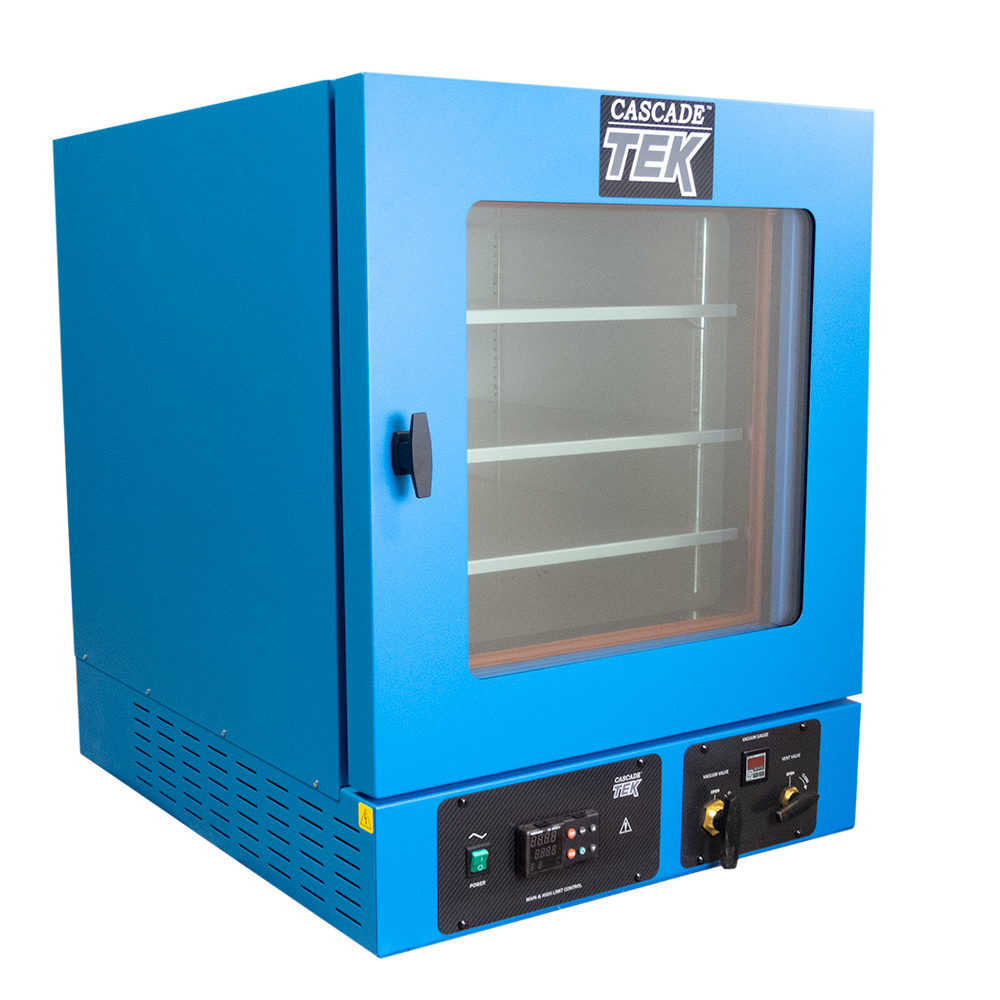

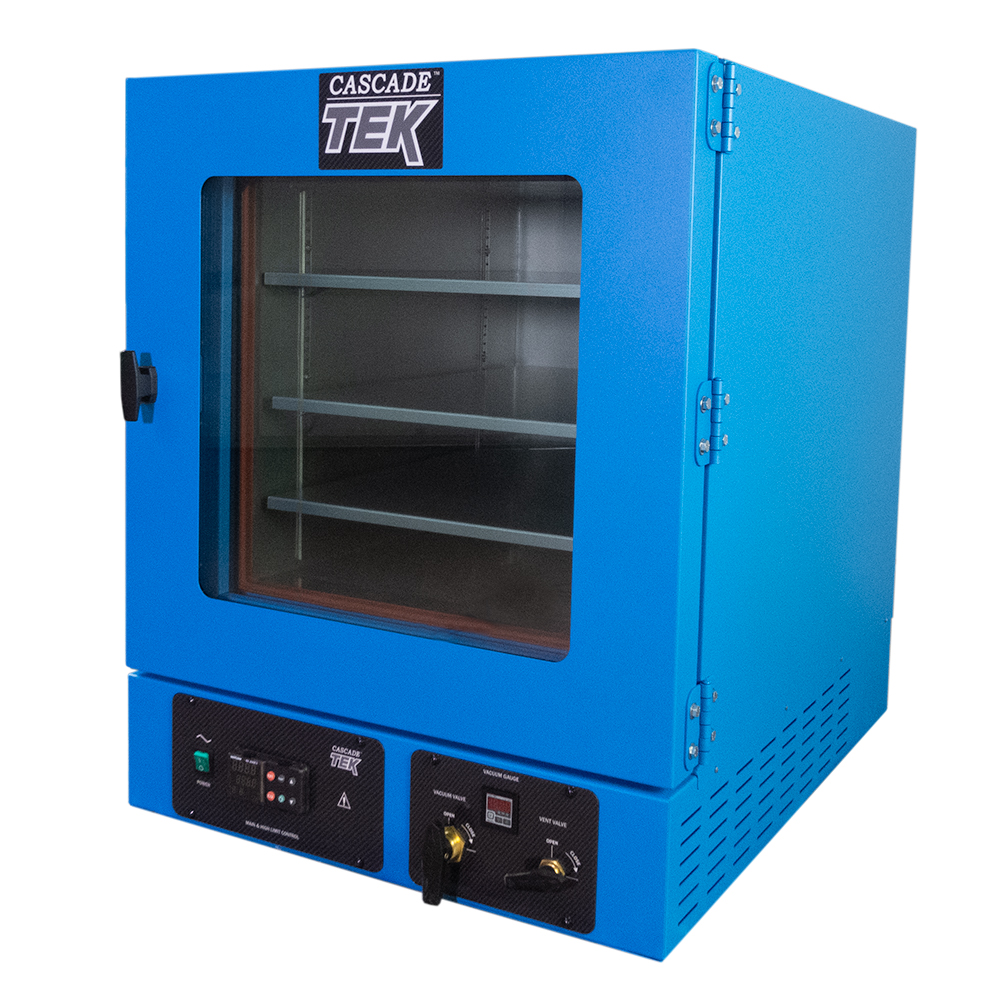

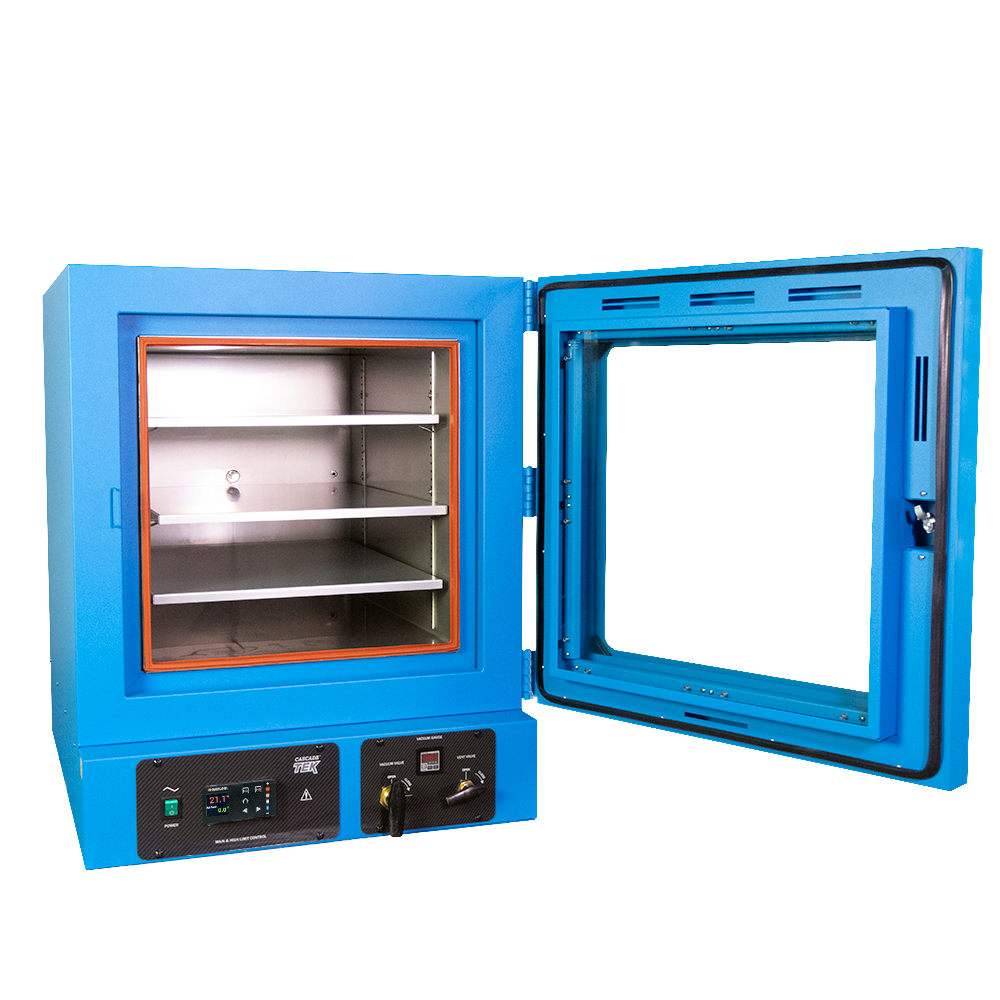

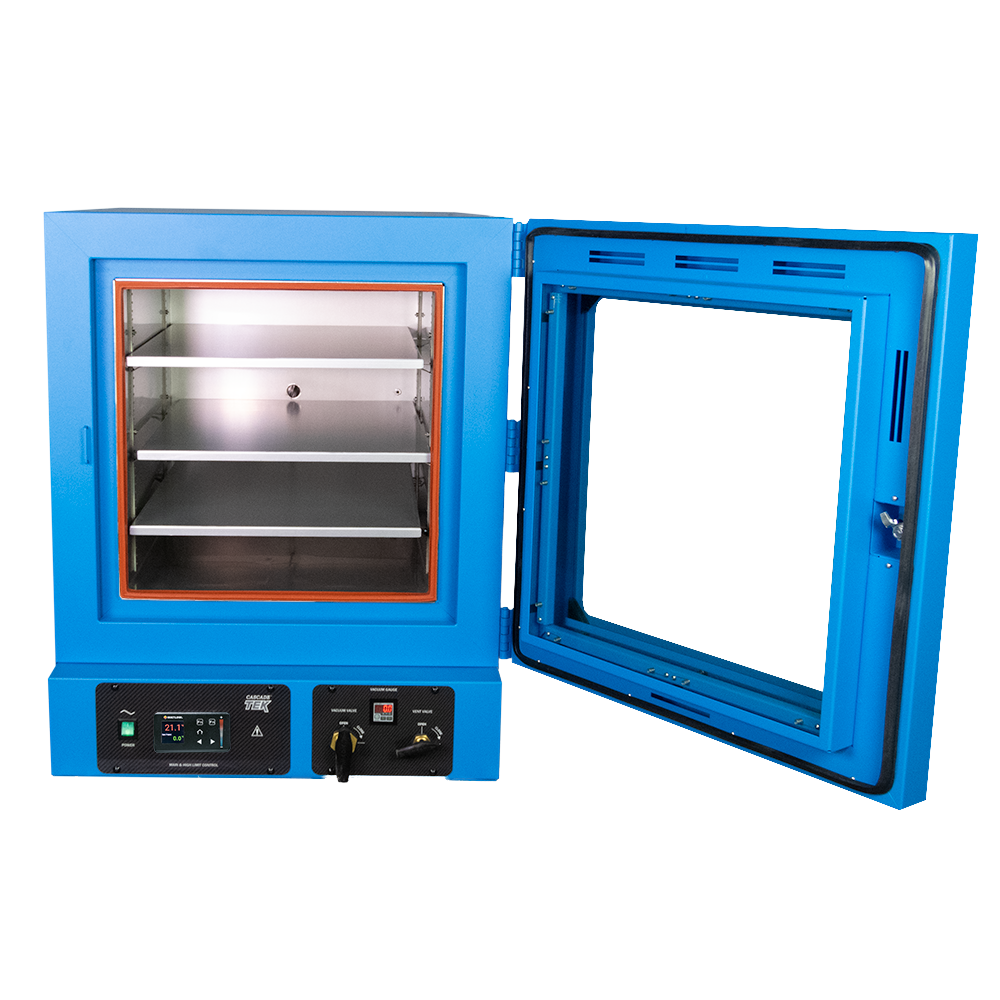

The Cascade TEK TVO-5 vacuum oven is our largest benchtop (18″ x 18″). Cascade TEK is happy to offer everything you need for a complete vacuum drying system – including dry or wet vacuum pumps, connection kits and a variety of replacement door gaskets suitable to your application.

Important Vacuum Oven Features

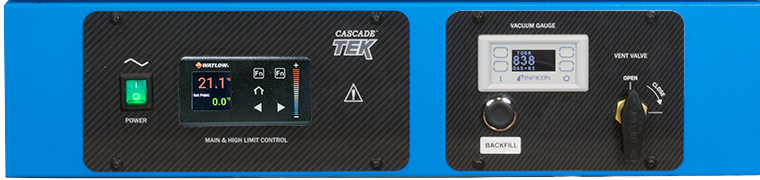

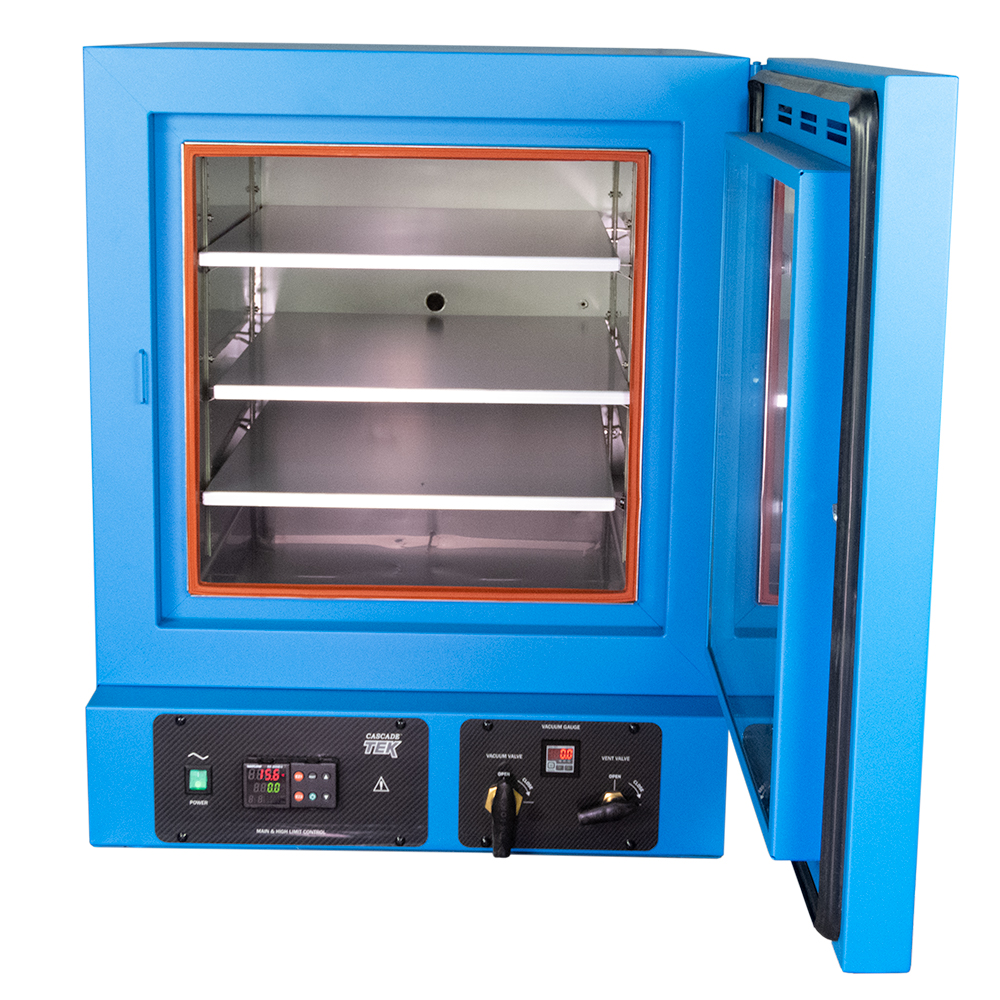

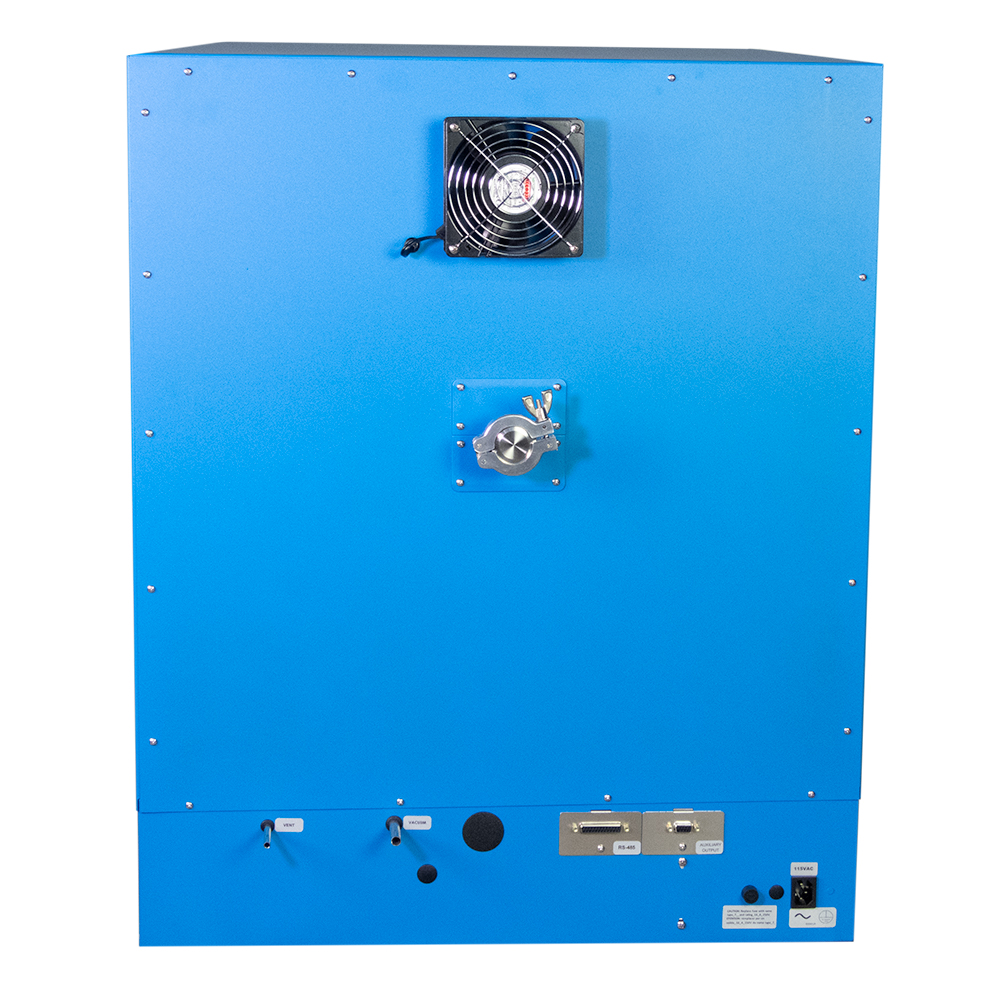

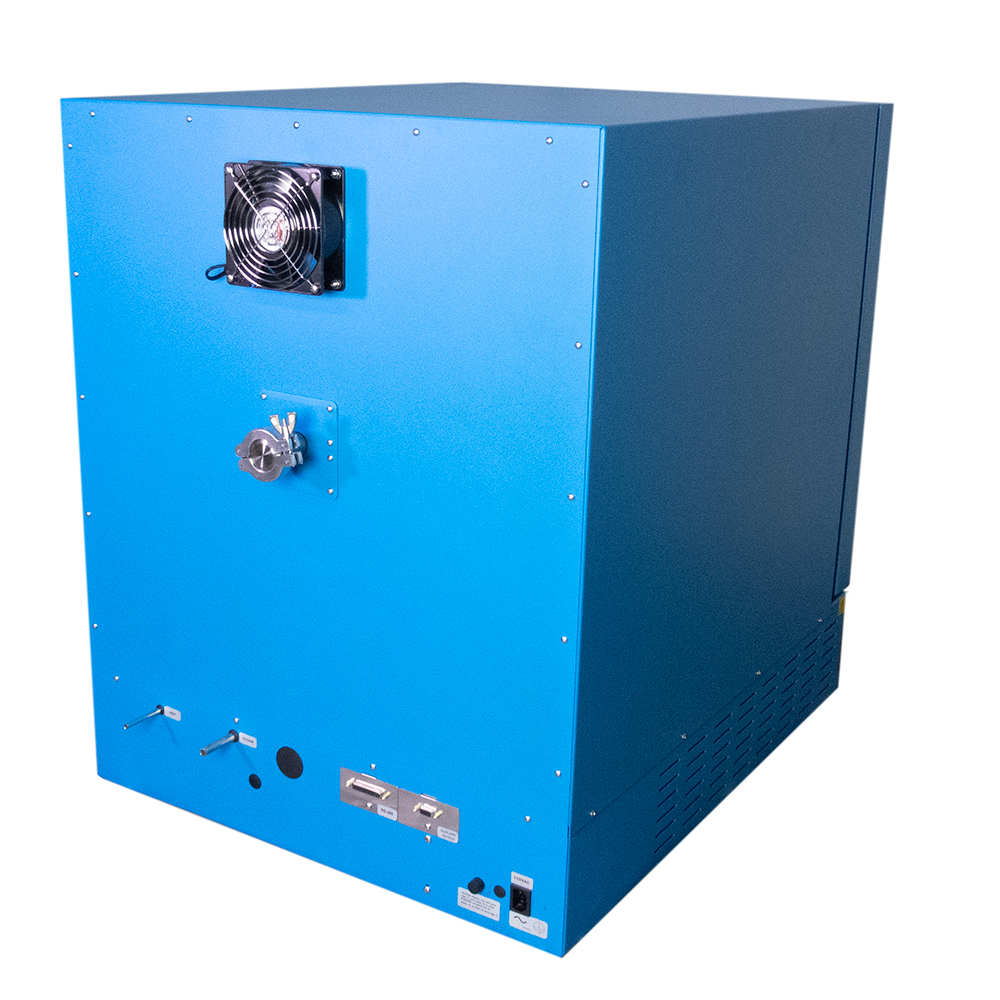

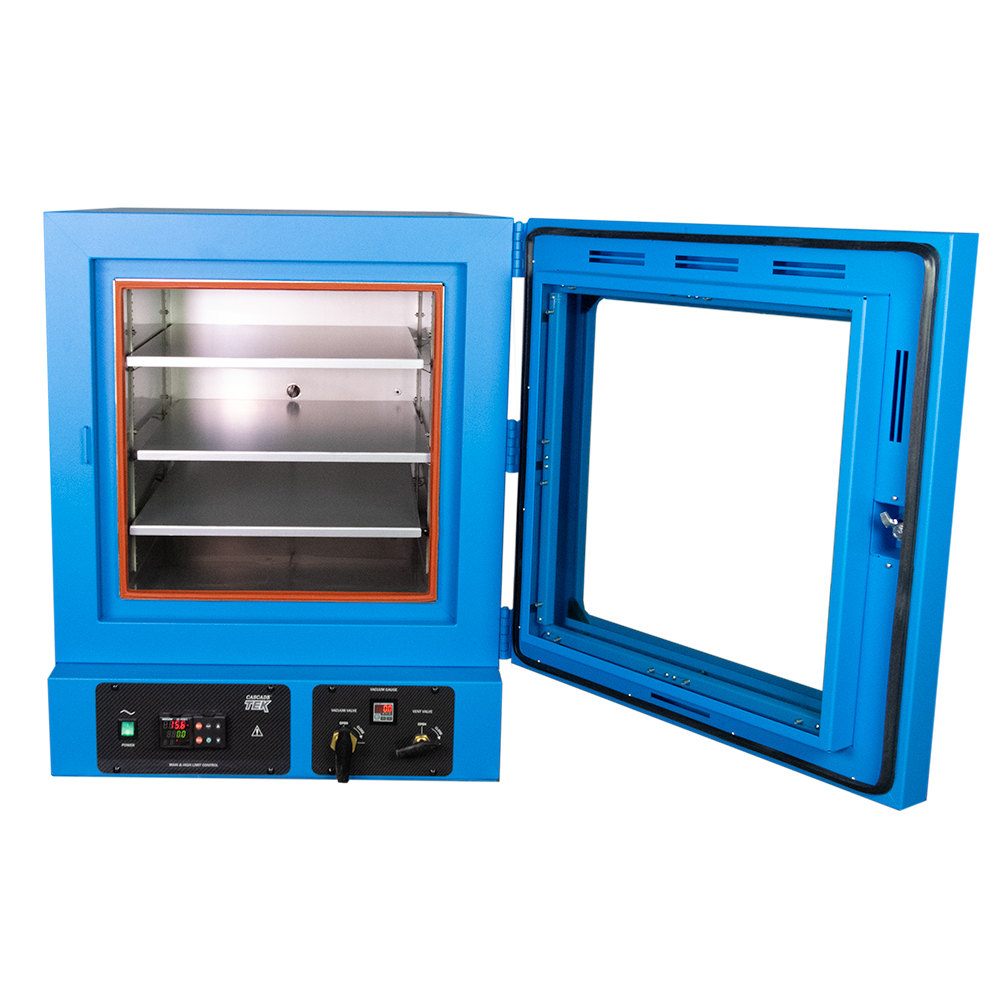

Oven temperature is controlled via a Watlow programmable ramp and soak controller. (Ask about how it can be configured to automatically execute your vacuum drying process). The TVO-5 also includes a fully integrated digital overtemperature protection controller. Vacuum is read in inches of Mercury (Hg) via a digital vacuum gauge. Vacuum & Backfill hand valves are conveniently located on the front control panel. The purge valve is set up to allow for backfilling with any inert gas. Rear connections include: a 3/8″ tube stub for the vacuum pump and a 1/4″ tube stub for backfill. An additional KF25 vacuum connection is located in the rear center for optional feedthrough or sensor connections. The TVO-5 also has 3 adjustable aluminum shelves. Cascade TEK offers the appropriately sized connection kits and pumps to bring the entire system on line.

Standard Features

Glass Viewing Window
Inert gas backfill Connection
Stainless Steel Interior
Aluminum Shelves
Powder Coated Steel Exterior
Digital Integrated Over Temperature Limit
Spare KF25 Access Port
Recipe based PID Temperature Control. 4 Ramp and Soak recipes with up to 40 total steps.
61010-1, EN 61010-1, CSA 61010-1, CE, SAFETY CERTIFICATIONS
Analog Outputs for temperature and pressure

Automate Your Vacuum Drying Process

Cascade TEK can automate the TVO-5 to execute your vacuum drying process with the push of a button. This includes automatic opening/closing of vacuum/vent valves, automatic backfill sequence and temperature ramps, alarms and shut down. Our automated systems integrate specialty pumps, traps, serial communications and vacuum rated feedthrough based on your specific needs. Please inquire.

Customized to Meet Your Specific Application

Cascade TEK understands that every requirement is unique. We do not pair a generic vacuum pump with each oven. We help determine the correct pump to meet your exact requirements. Let us help you choose the correct vacuum pump and connection kit:
• See our favorite vacuum pumps
• See our list of connection kits and other vacuum accessories

Product Specifications

Capacity

4.5 cu.ft. (127.4 liters)

Interior Dimensions

18” x 24” x 18” (457 x 610 x 457 mm)

Exterior Dimensions

26.5” x 34.5” x 32.3” (673 x 876 x 819 mm)

Unit Weight

360 lb (163 kg)

Shipping Weight

452 lb (205 kg)

Shelves

3 standard, 6 maximum

Access Port

1” vacuum port (KF25)

Warranty

2-Year Limited Warranty

Voltage

110V-120V

NEMA Plug Supplied

5-15P

Temperature Range

10°C above ambient to 220°C

Vacuum Range

-29.9 inHg

Vacuum Gauge

0 to -29.9" Hg

Safety Certifications

TÜV SÜD America: Canada CSA 61010-1, USA UL 61010-1, EU EN 61010-1, CE
