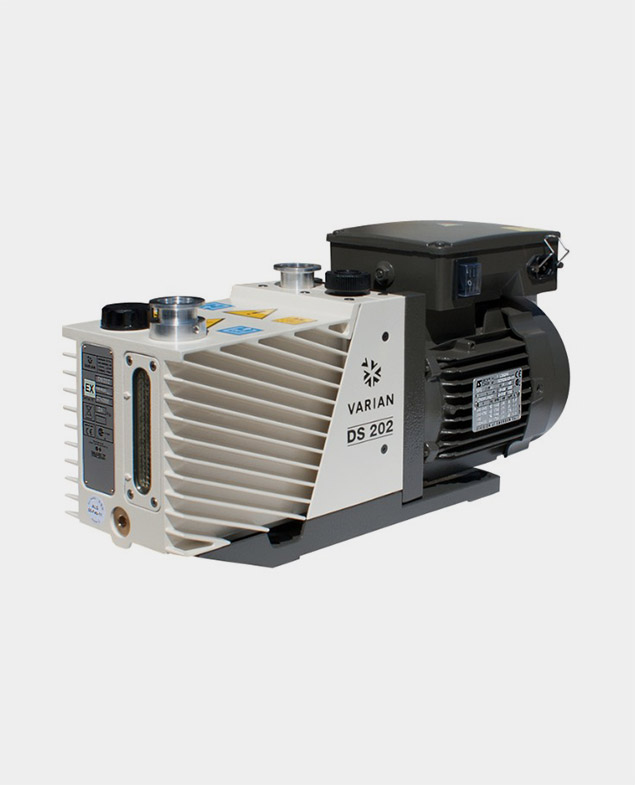

Agilent Varian DS 202

$3,300.00

Part Id: 6700606

Very simple and highly reliable design, these field proven rotary vane pumps provide excellent vacuum performance. The DS Rotary Vane pumps provide high pumping stability for light gases, low noise, low operating temperature, minimal oil backstreaming, and a long operating life. Includes anti-suckback valve and vent device, with forced oil circulation.

Request a Quote

Product Description

Simple and highly reliable design, these field proven rotary vane pumps provide excellent vacuum performance. Agilent’s quality and manufacturing standards ensure that the DS Rotary Vane Pumps provide high pumping stability for light gases, low noise, minimal oil backstreaming, and a long operating life. The pump’s two-stage design allows for low operating temperature, minimal backstreaming at low pressure and good pumping efficiency and gas ballast in the low 10-2 mbar region. DS Rotary Vane Pumps conform to European Union directives (CE) and Restriction of Hazardous Substances (RoHS) requirements, and all pumps are UL and Canadian Standards Authority (CSA) approved. 9499315.

Product Specifications

Ultimate Vacuum

1.5 x 10-3 Torr

Pumping Speed

5.8 CFM

Water Vapor Capacity

100 g/h

Inlet Connection

KF25

Outlet Connection

KF25

Electrical

50/60Hz, AC, 1Ø

Voltage

100V-230V

Unit Weight

55 lb (25 kg)

Shipping Dimensions

32" X 13" X 16" (813 X 331 X 407 mm)

Shipping Weight

64 lb (29 kg)

Warranty

Manufacturer's Warranty
