TVO-5-2-A Vacuum Automation Oven


Part Id: CTVA522-EA

AUTOMATED -Easy Push Button Execution of Pre-Programmed Drying Process. Pneumatic solenoid valves open and close a vacuum valve and a backfilling valve. The Vacuum Valve is controlled by the Watlow EZ Zone and is based on time. Great for multiple pump/purge processes.

Also available in 110 VOLTS.

Request a Quote

Product Description

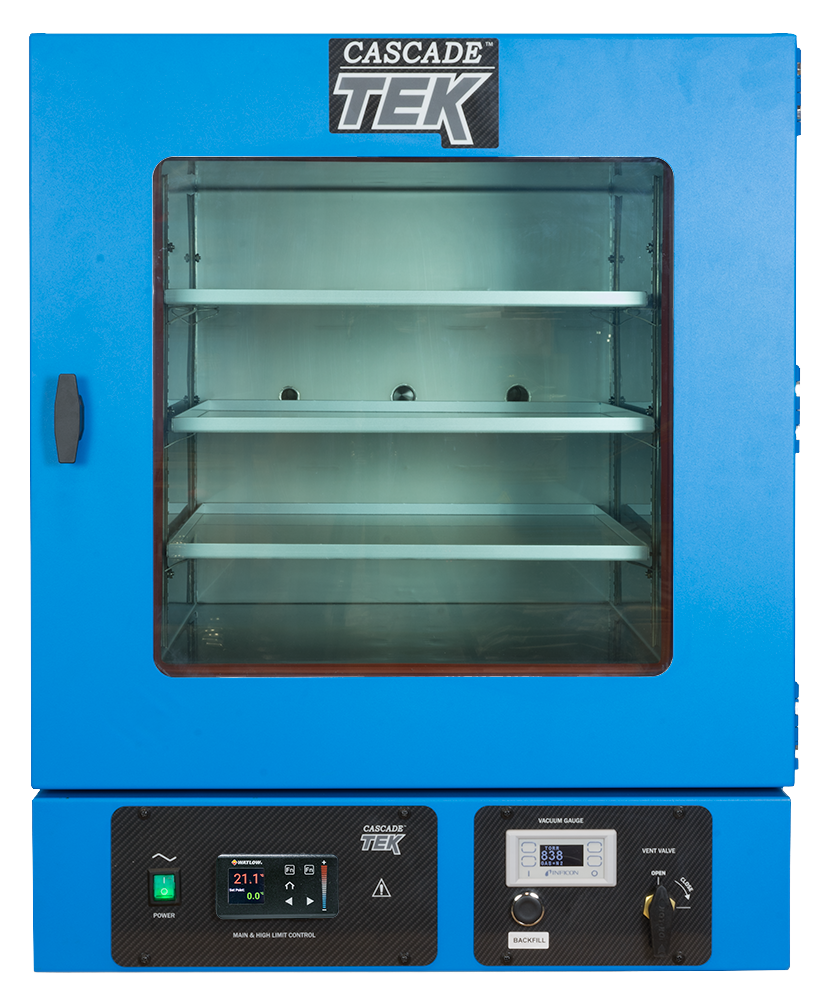

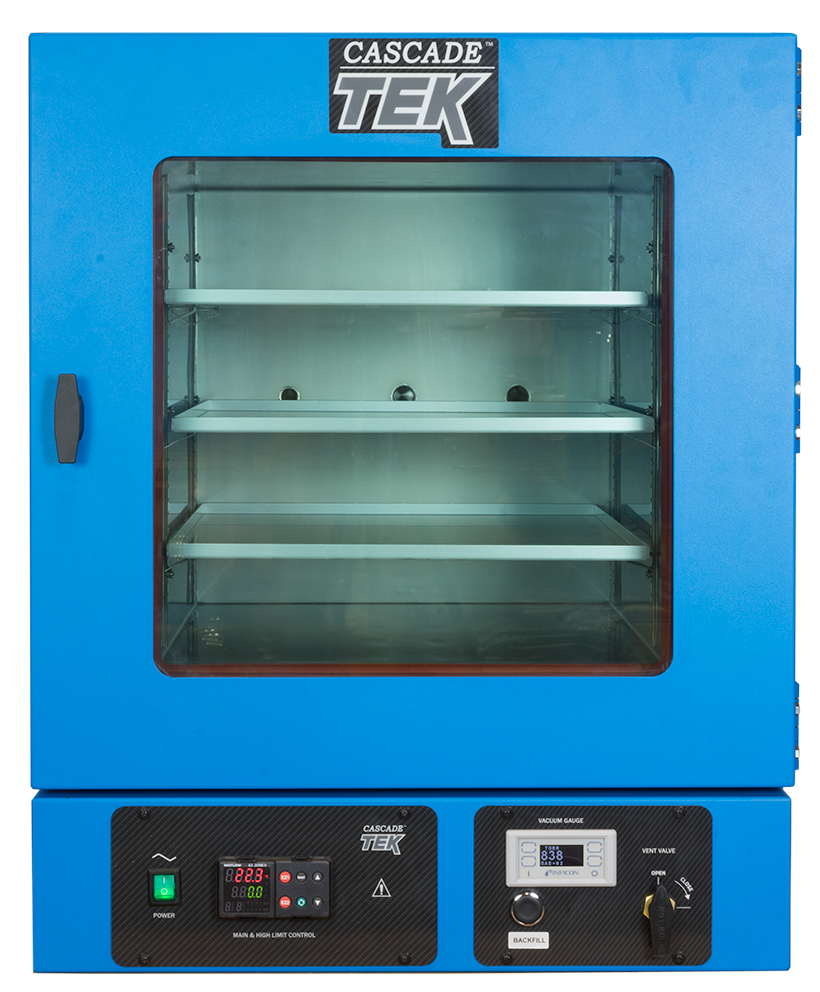

TVO-5-2-A Automation Oven

The TVO-5-2-A has an upgraded vacuum system that includes an electro-pneumatic isolation/vacuum valve installed between the oven and vacuum pump. This feature allows the operator to use profiles in the Watlow controller or manually operate the vacuum system in the oven. Both valves are controlled by event outputs in the Watlow controller. The operator can turn this event on by pressing a button on the controller. The valve will open and the vacuum pump will evacuate the oven down to the ultimate pressure rating of the vacuum pump. When the process is complete, the operator turns off the vacuum event and the oven will automatically backfill to 500 Torr. This backfill limit is controlled by a set point in the digital vacuum gauge controller and can be adjusted by the operator if a different level is desired. It can also be set to not auto backfill if desired. The oven can also be programmed to perform this function in a recipe in conjunction with heating allowing multiple pump purge & heating cycles to help remove moisture from product without the need for the operator to be physically present to control the oven.

Includes upgraded Inficon (1000 Torr to 0.1 mTorr) Full Range Digital Vacuum Gauge to allow for reading the full ultimate vacuum of the process/pump.

Standard Features

Glass Viewing Window
Inert gas backfill Connection
Stainless Steel Interior
Aluminum Shelves
Powder Coated Steel Exterior
Digital Integrated Over Temperature Limit
Spare KF-25 Access Port
Recipe based PID Temperature Control. 4 Ramp and Soak recipes with up to 40 total steps.
Upgraded Inficon Full Range Vacuum Gauge
UL 61010-1, EN 61010-1, CSA 61010-1, CE, SAFETY CERTIFICATIONS
Analog Outputs

Customized to Meet Your Specific Application

Cascade TEK understands that every requirement is unique. Ask about modifying our ovens to meet your exact requirements. Popular modifications include:

• Additional Serial communication capabilities including Modbus® RTU, EtherNet/IP™, Modbus® TCP, PROFIBUS DP,
DeviceNet™ and J1939 CAN bus
• Additional access ports for feedthrough and power connections
• Additional shelves or custom racks to maximize oven capacity
• Also available in 110V configurations
• NIST traceable calibrations
• Factory Acceptance Testing (FAT)

Vacuum pumps are also very application specific.  We help determine the correct pump to meet your exact requirements. Let us help you choose the correct vacuum pump and connection kit:

• See our favorite vacuum pumps
• See our list of connection kits and other vacuum accessories

Product Specifications


4.5 cu.ft. (127.4 liters)

Interior Dimensions (W x D x H)

18.1" x 24.1" x 18.1" (459 x 612 x 459 mm)

Exterior Dimensions (W x D x H)

26.6" x 38.6" x 33.2" (676 x 981 x 844 mm)

Unit Weight

365 lbs (166 kgs)

Shipping Weight

460 lbs (209 kgs)


3 standard, 6 maximum

Access Port

1" vacuum port (KF-25)


2-Year Limited Warranty


50/60Hz, AC, 1Ø



NEMA Plug Supplied

EU1-16P; NEMA 6-15P

Temperature Range

10°C above ambient to 220°C

Heat-Up Time

120 minutes to 150ºC

Temperature Uniformity

±6% of Set Point

Vacuum Range

1000 torr to 0.1 mTorr

Vacuum Gauge

1000 Torr – 0.1 mTorr

Safety Certifications

UL 61010-1, EN 61010-1, CSA 61010-1. CE
