TFO-1-2 Forced Air Lab Oven

$2,900.00

Part Id: CTF122-EA

Benchtop oven ideal for drying, curing, and baking in laboratory or industrial environments.

Also available in 110 VOLTS.

Request a Quote

Product Description

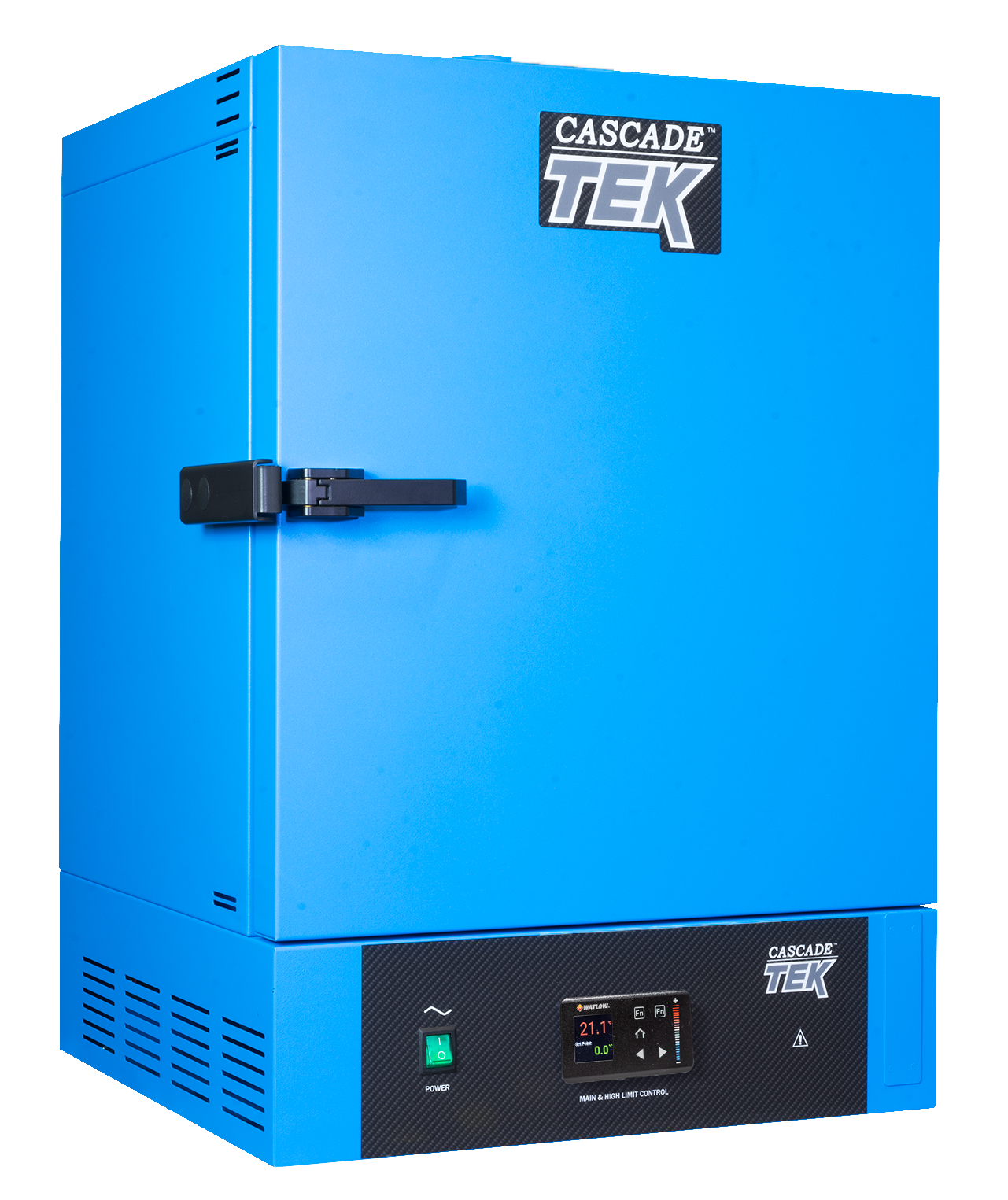

Cascade TEK’s Model TFO-1-2 benchtop forced air oven is designed to meet both manufacturing and laboratory requirements. Our standard ovens are in stock and ready to ship.

Important Standard Oven Features

• Programmable Watlow ramp and soak controller can store and execute different drying profiles.
• Integrated Over Temperature Limit (OTL) with digital set-point to provide additional limit control.

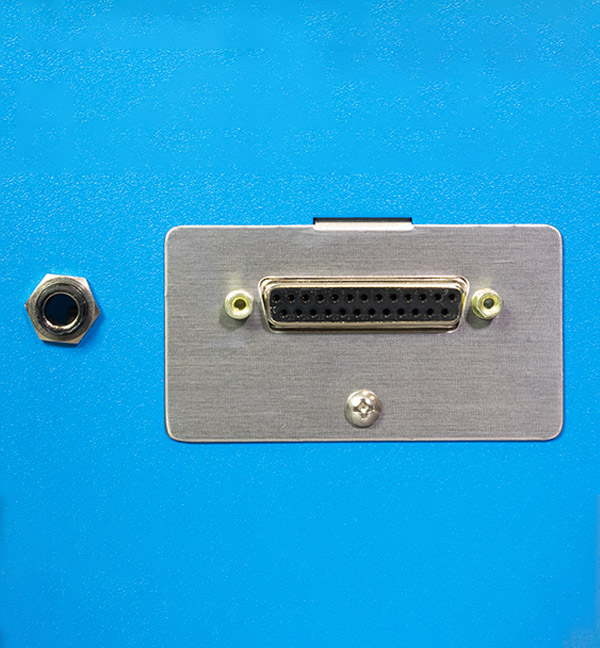

• Rear access port allows for feedthrough, power cable connections into the oven
• Adjustable shelves included (2)
• Ovens are in stock and ready to ship
• Made in USA with a 2 year warranty

Customized to Meet Your Specific Application

Cascade TEK understands that every requirement is unique. Ask about modifying our ovens to meet your exact requirements. Popular modifications include:

• Chart recorders, serial communications, software for data logging
• Additional access ports for feedthrough and power connections
• Additional shelves or custom racks to maximize oven capacity
• Also available in 110V configurations
• NIST traceable calibrations
• Factory Acceptance Testing (FAT)

See our list of forced air ovens accessories for more options

Product Specifications

Capacity

1.4 cu.ft. (39.4 liters)

Interior Dimensions

12.1''x 13.7''x 14.5'' (307 x 349 x 368mm)

Exterior Dimensions

22.7” x 23.5” x 31.5” (577 x 596 x 800mm)

Unit Weight

126.5 lb (57.4kg)

Shipping Weight

167 lb (76.5kg)

Shelves

2 standard, 6 maximum

Access Port

1.75" Rear

Warranty

2-Year Limited Warranty

Electrical

50/60Hz, AC, 1Ø

Voltage

220V-240V

NEMA Plug Supplied

6-15P, EU1-16P, CEE7/7

Temperature Range

15°C above ambient to 306°C

Heat-Up Time

20 minutes to 150ºC

Recovery after Door Opening (30 Sec.)

3.5 minutes to 150ºC

Temperature Uniformity

1.80ºC

Flow Rate

5.6 CFM

Safety Certifications

TÜV SÜD America: Canada CSA 61010-1, USA UL 61010-1, EU EN 61010-1, CE
