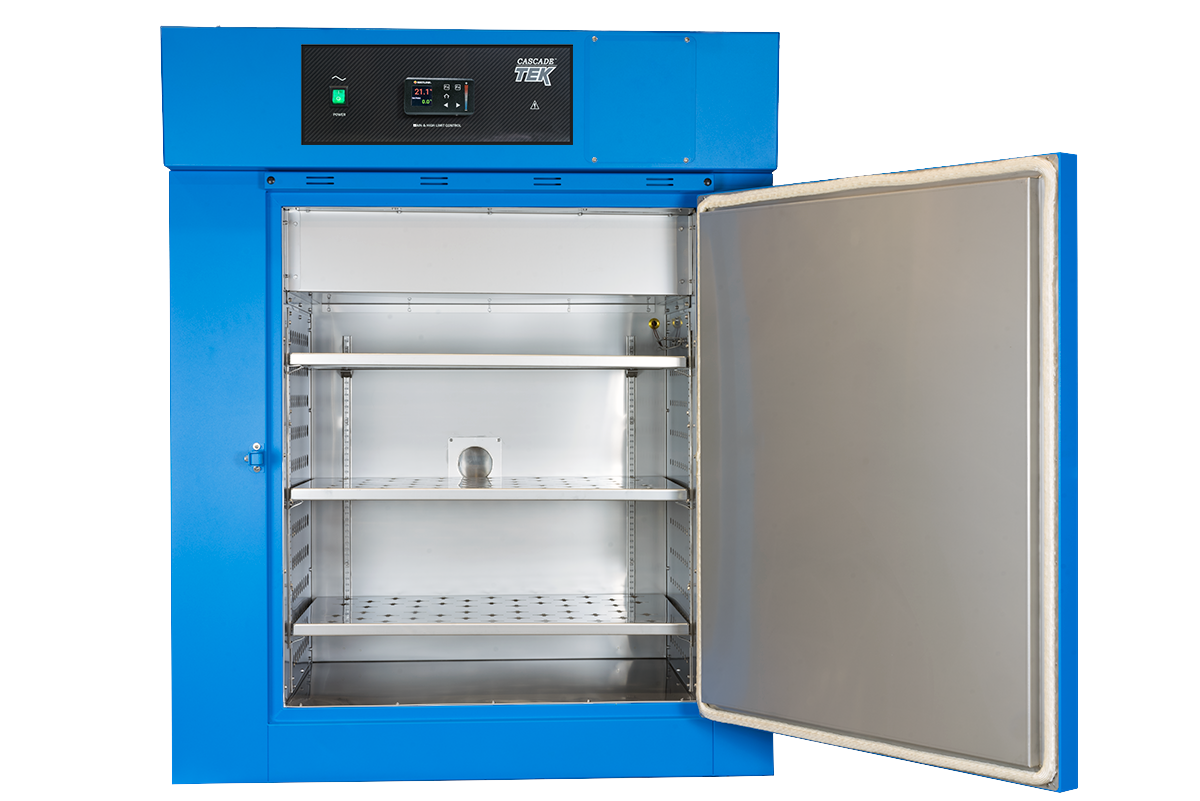

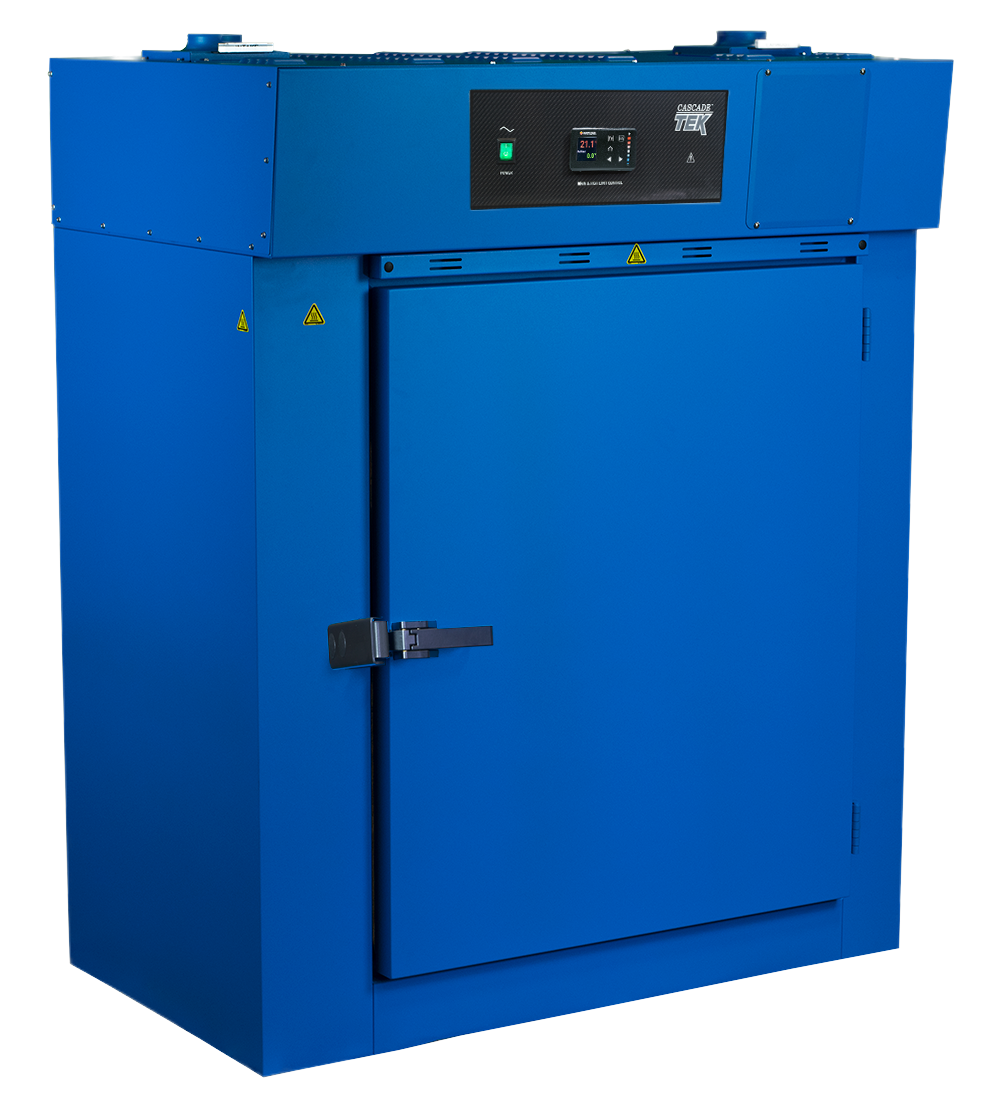

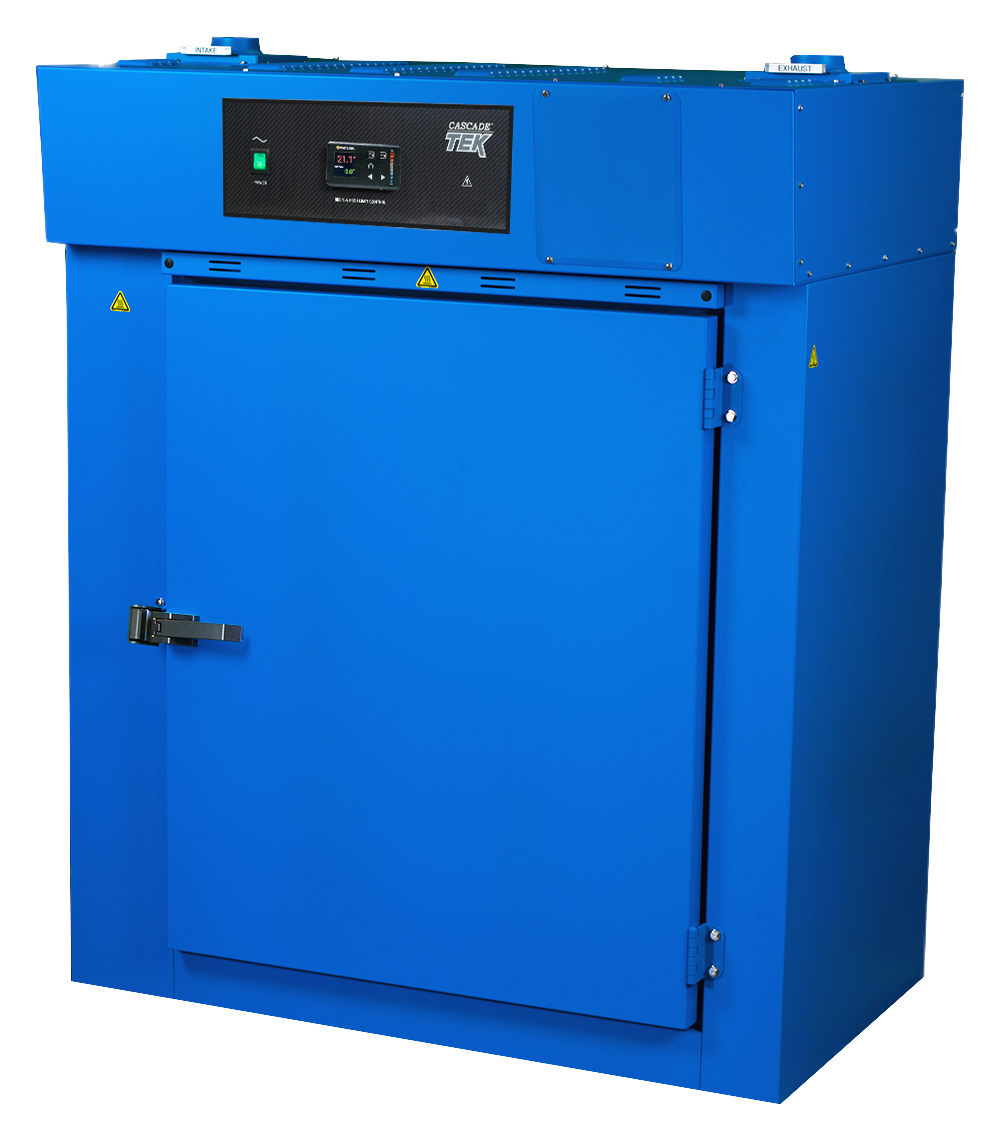

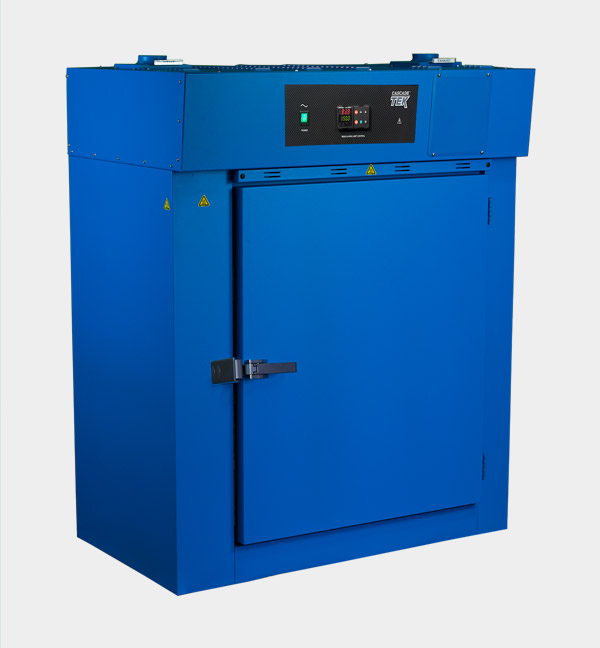

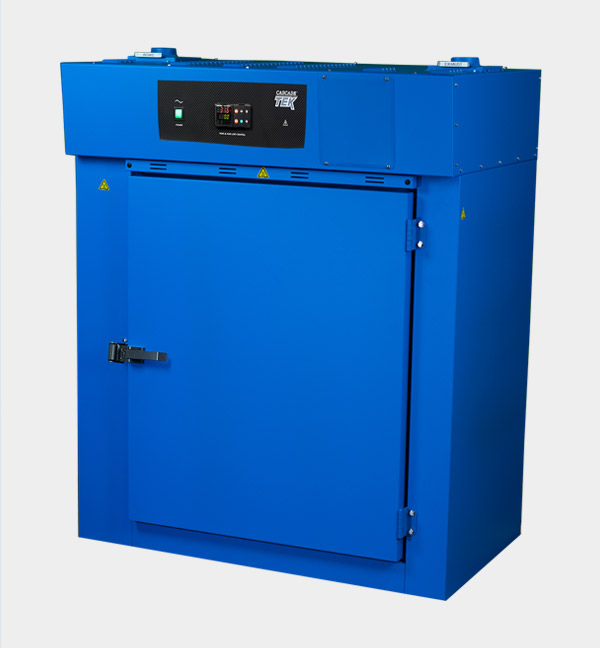

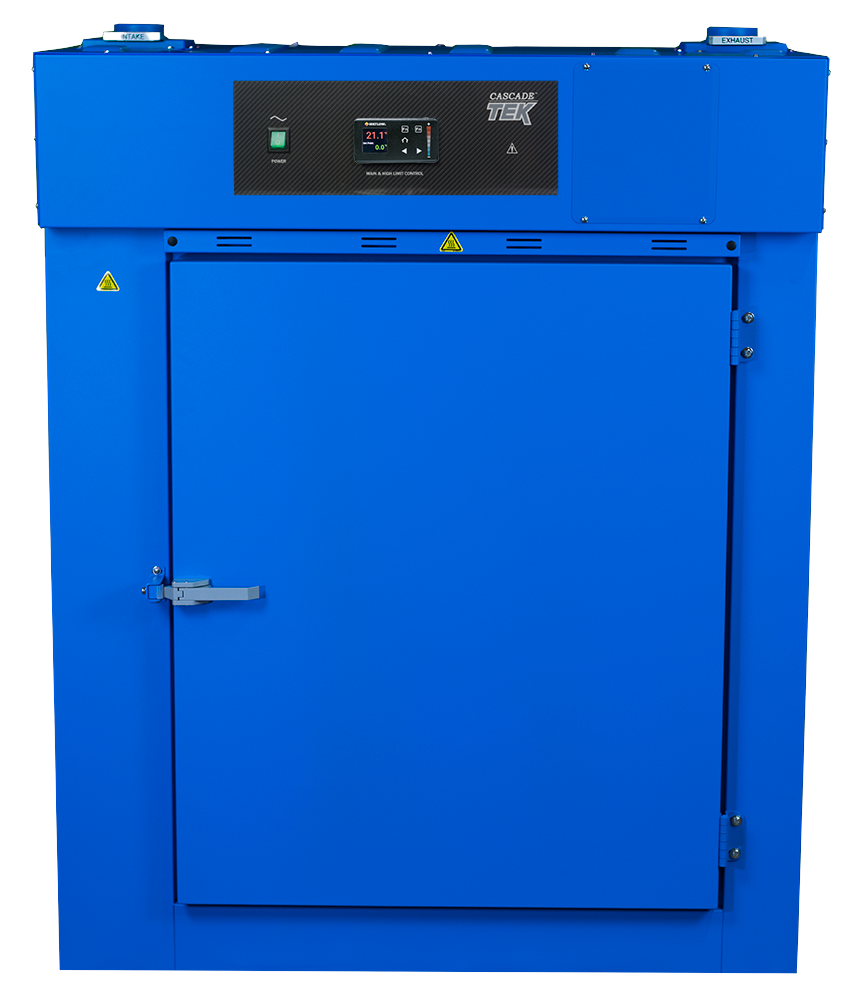

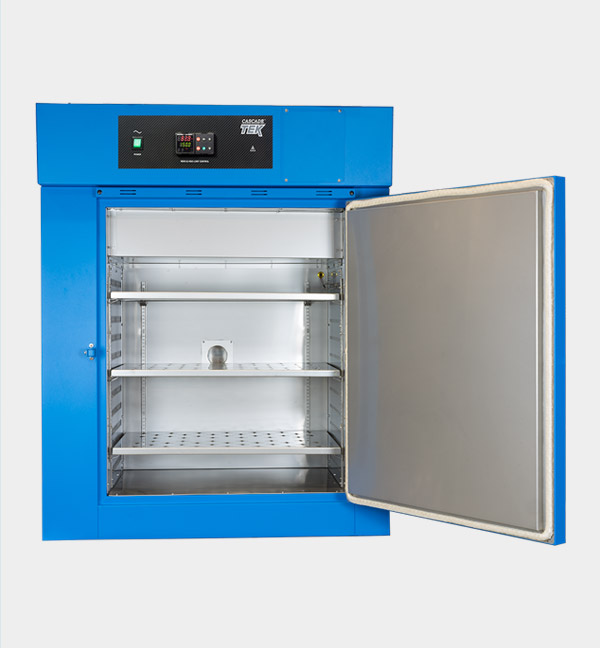

TFO-10 Forced Air Lab Oven

$7,800.00

Part Id: CTF1023-H

Request a Quote

Product Description

Cascade TEK’s Model TFO-10 is a large-capacity forced air-drying oven designed to meet both manufacturing and laboratory requirements. Ergonomically designed for easy, comfortable access and top viewing controls, with additional optional lower cabinet storage space.

Important Standard Oven Features

• Programmable Watlow PM9 Plus ramp and soak controller can store and execute different drying profiles.
• Independent Over Temperature Protection Failsafe
• Rear access port allows for feed through, power cable connections into the oven
• Analog Output
• Adjustable shelves included
• Ovens are in stock and ready to ship
• Made in the USA

Customized to Meet Your Specific Application

Cascade TEK understands that every requirement is unique. Ask about modifying our ovens to meet your exact requirements. Popular modifications include:

• Upgrade to Watlow F4T Touchscreen Controller with integrated Datalogging capabilities
• Additional Serial communication capabilities including Modbus® RTU, EtherNet/IP™, Modbus® TCP, PROFIBUS DP,
DeviceNet™ and J1939 CAN bus
• Additional access ports for feedthrough and power connections
• Additional shelves or custom racks to maximize oven capacity
• Also available in 220V configurations
• NIST traceable calibrations
• Factory Acceptance Testing (FAT)
• Chart recorders

See our list of forced air ovens accessories for more options

• Before 2024 upgrade to Watlow PM9 Plus unit controllers from the discontinued Watlow EZ Controllers product manual are located on our resources page

Product Specifications

Capacity

10.6 cu.ft. (300 liters)

Interior Dimensions (W x D x H)

29.8" x 20.6" x 30.0 (757 x 524 x 762 mm)

Exterior Dimensions (W x D x H)

44.1" x 29.9" x 56.8" (1121 x 760 x 1442 mm)

Unit Weight

357 lb (162.8kg)

Shipping Weight

449 lb (204kg)

Shelves

3 standard, 8 Maximum

Access Port

3"

Warranty

2-Year Limited Warranty

Electrical

50/60Hz, AC, 1Ø

Voltage

220V-240V

Temperature Range

15°C above ambient to 306°C

Heat-Up Time

15 minutes to 150ºC

Recovery after Door Opening (30 Sec.)

3 minutes to 150ºC

Temperature Uniformity

2.50ºC

Flow Rate

51 CFM

Safety Certifications

TÜV SÜD America: Canada CSA 61010-1, USA UL 61010-1, EU EN 61010-1, CE
